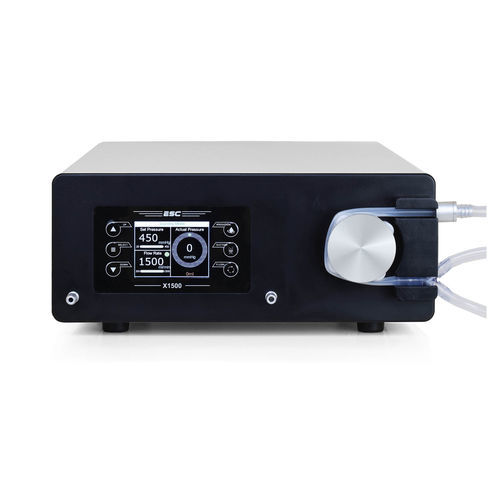

漑+吸引流体管理システム

内視鏡用

Application, Features, Highlights • Hysteroscopy intra-cavity pressure management • TURP intra-cavity pressure management • Laparoscopy Irrigation and Suction Pump SELF TEST AUTOMATICALLY on power at 100mmHg, 200mmHg, 300mmHg, 400mmHg. • Best in class Piezo Pressure Sensor. • Dedicated Priming Control. • Fluid flow rate management. • Fast and more accurate pressure control. • Large numerical and symbolic display of intra-cavity pressure. • Disposable tubings D EHP-free. • Non-Disposable sterilizable tubings. SPECIFICATIONS : Flow ………………… 0.01 to 1.0l/min Pressure …………… 50 to 400 mmHg Suction ……………. 0.65 bar Control : …………… Touch screen • Complies with medical EMC standard • Class 1 Equipment • Water Ingress Protection , IPX0 - Ordinary Equipment Size : 310*120*330 Weight : 7 Kg Electrical : Primary: 100-240 VAC , 50/60 Hz, Power Rating 150 VA , Fuses : Two Environment:- Operating Condition : 5-40*C Relative Humidity : 30-95% Transportation and Storage : - 20*C to 60*C , 10%- 75% Relative humidity 700-1060 hpa
