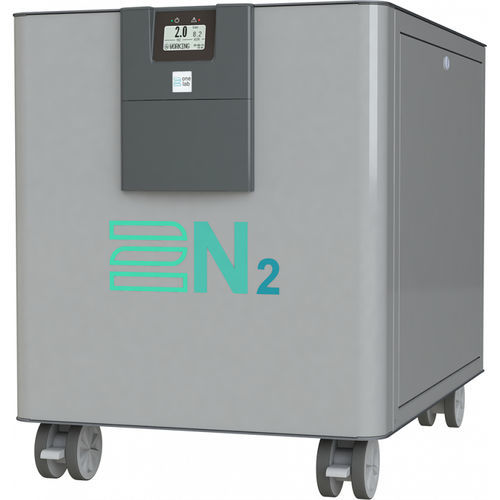

Nitrogen generator 2N2

compressed airmobilemembrane

Nitrogen generator is used to supply 2Create with nitrogen gas at the push of a button, to reduce the oxygen amount in the building chamber to prevent material from oxidation product details The Nitrogen generator 2N2 use Membrane technology. They are engineered to transform standard compressed air into a safe, regulated supply of Nitrogen up to 70 L/min with a purity up to 99.9%. The generator produces a continuous flow of Nitrogen with Laser grade in 24/7 production process worldwide, even under the most challenging environments to guarantee frictionless industrial use. This 2N2 series is equipped with a scroll built-in oil less compressor with inverter technology. The exclusive electronic flow control combined with the compressor control by the inverter allows to generate Nitrogen with a higher purity using a smaller volume at less pressure of air which results in reduced energy costs and increase the life time of the compressor. Continuous control of the operating parameters of Nitrogen allows to maintain the system at its maximum efficiency. The 2N2 has been developed to meet specific requirements in term of gas, flow, purity and pressure for Laser metal printing. Main advantages Easy use and quick installation Low noise Low maintenance No belts, direct drive Generates nitrogen on demand Exclusive electronic flow control Ultra silent technology: < 50 dB(A) Reliable – No vibrations Designed to run 24 hours a day technical data N2 outlet 6mm Flow rate (Max) 70 l/min Outlet pressure (Max) 9 bar (130 psi) Nitrogen purity < 500 ppm@ 10 l/min < 0.5% @ 30 l/min Power supply voltage 220-240 Vac (±10%) 50/60 Hz Rated power (Max) 2.2 KW
