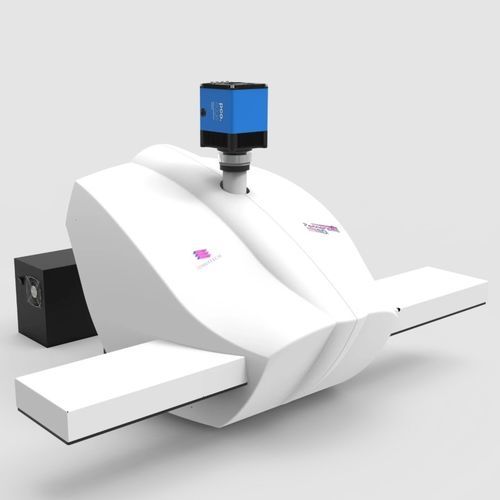

Microscope slide scanner PANNORAMIC MIDI II
automaticbright fieldfluorescence

Microscope slide scanner - PANNORAMIC MIDI II - 3DHISTECH Ltd. - automatic / bright field / fluorescence
Microscope slide scanner - PANNORAMIC MIDI II - 3DHISTECH Ltd. - automatic / bright field / fluorescence
Microscope slide scanner - PANNORAMIC MIDI II - 3DHISTECH Ltd. - automatic / bright field / fluorescence - image - 2
Microscope slide scanner - PANNORAMIC MIDI II - 3DHISTECH Ltd. - automatic / bright field / fluorescence - image - 3
Microscope slide scanner - PANNORAMIC MIDI II - 3DHISTECH Ltd. - automatic / bright field / fluorescence - image - 4
Microscope slide scanner - PANNORAMIC MIDI II - 3DHISTECH Ltd. - automatic / bright field / fluorescence - image - 5
Microscope slide scanner - PANNORAMIC MIDI II - 3DHISTECH Ltd. - automatic / bright field / fluorescence - image - 6
Microscope slide scanner - PANNORAMIC MIDI II - 3DHISTECH Ltd. - automatic / bright field / fluorescence - image - 7
Microscope slide scanner - PANNORAMIC MIDI II - 3DHISTECH Ltd. - automatic / bright field / fluorescence - image - 8
Add to favorites
Compare this product


Characteristics

Type of support
for microscope slides
Other characteristics
bright field, automatic, fluorescence
Length

50 cm
(19.7 in)

Width

70 cm
(27.6 in)

Weight

23 kg
(50.7 lb)

Height

50 cm
(19.7 in)

Magnification

43 unit, 86 unit

Slide capacity loading

12 unit

Scanning duration

3.2 min

Resolution (micrometer/pixel)

0.09 unit, 0.17 unit

Description

The Pannoramic MIDI II is an automatic digital slide scanner with a remarkable feature set at an affordable price: 12-slide capacity, fluorescence scanning, and many more. Key Features Exceptional image quality The PANNORAMIC Midi II supports the best Carl Zeiss objectives, achieving up to 43x or 86x magnification and 0.087 µm/pixel resolution within the same instrument, along with an advanced FISH scanning technique. Automatic loading The PANNORAMIC MIDI II scans automatically up to 12 slides in one run. Its innovative loading mechanism loads and unloads the slides, detects the sample and digitizes it in perfect quality. A New Level of Fluorescence Scanning 9 physical filter cubes and 45 logical fluorescence channels are available. A new camera and the new objective elevate fluorescence scanning to a new level. New monochrome PCO edge 4.2 bi camera provides even better fluorescence image quality, especially for immunohistochemistry (IHC) applications and opal stainings. The sensitivity of the chip is extended to the 720-750 nanometer range, which reduces exposition time and further improves image quality. Also, the new camera works directly through a USB 3.0 port, no additional graphics card is necessary. New optional 10x objective reduces fluorescence scanning time and provides further improved image quality. The covered slide loading compartment protects fluorescence slides from prolonged exposure to unnecessary light, resulting in even higher image quality during fluorescence scanning. Scanner Software for Research PANNORAMIC Scanners are powered by the PANNORAMIC Scanner Software for Research, which provides versatile,
