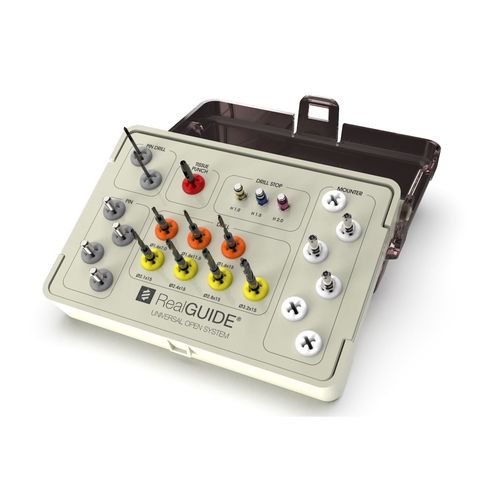

Dental surgery instrument kit

A simple kit ideal for all interventions in which there is not enough space for RealGUIDE universal surgical kit standard sleeve. The surgical Mini-kit includes a set of drills of 1,6 mm diameter with 3 different lengths (7, 11.5 and 15 mm) and cylindrical drills of 15 mm with increasing diameter (2.4, 2.8 and 3.2 mm). The set of stops included in the kit (1.0, 1.5 and 2.0 mm) allows for adapting the length of the cutting edge of drills to the different implant lengths and creating osteotomies with customized morphology. The Kit is used with 3DIEMME RealGUIDE SMALL sleeves which have a 3.55 mm internal diameter. A guide path of 9 mm is provided, consisting in the surgical guide sleeve (4 mm) and in the maximum thickness of the soft tissues (5 mm). The vestibular fixing pin system and the drivers for Locator® connection are optionals. DRILLS AND DRILL STOPS For implant site preparation WITH SURGICAL GUIDE FIXATION SYSTEM Vestibular pins and drills with 1,5 mm diameter LOCATOR® With pin and driver for Locator® connection
