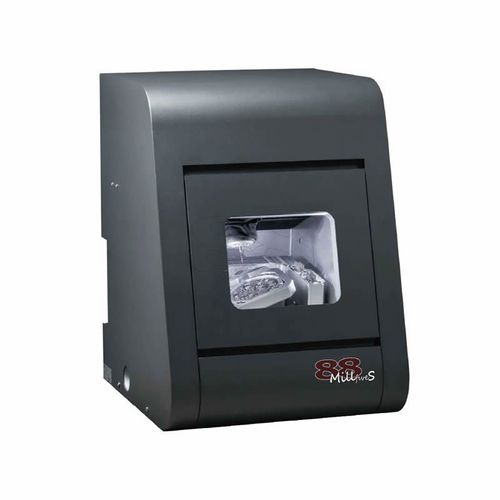

CAD/CAM milling machine Five S

dental5-axis

Axis rotation ± 35 degrees: the B axis, thanks to its wide rotation radius, eliminates most undercuts, making it ideal for the production of models, surgical guides and implantology 5 axes at simultaneous work: In addition to the three linear axes in x, y, and z, the machine is equipped with two rotary axes that allow a wide range of machining operations. Solid frame in a single aluminium casting: A single-cast aluminium frame, closed at 5 sides, absorbs vibrations and ensures high stability of the entire machine. In addition, the use of reinforced linear guides and stainless steel endless screws (Harmonic Drive) increases the rigidity of the axis system to achieve perfect milling results. Automatic loader for 16 tools: In addition to the tools used for machining, there is the possibility of equipping the machine with other tools so that you do not have to stop and replace them when one is out of use. The haptic measuring function allows the use of diamond tools. Sophisticated protection mechanism: All machine components are protected by a specific "air concept" system that allows air to circulate inside the milling chamber so that milling residues never come into contact with sensitive machine components. Possibility to use discs with thickness up to 40mm: The machine allows the milling of different materials: disks and blocks of wax, plastic, models in plaster, zirconium and composites and also Cr/Co. It is difficult to find a working process that is not possible to carry out with this machine. Powerful, high-precision electrospindle: 4 hybrid ceramic ball bearings and a continuous output of 300 W with extremely balanced torque.
