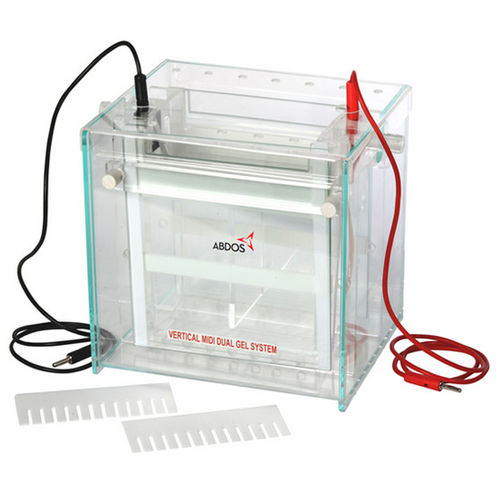

Benchtop electrophoresis system E12326

vertical

• The system is a twin plate 16 x 14 cm midi-gel unit designed specifically for PAGE techniques requiring self-cast gels, although precast gels may also be used. • The system contains standard casting units. • The system is compatible with standard, 16 x 14cm (W x H) commercially available precast gels. • Low buffer volume within the inner chamber of the GRM and bottom reservoir economises buffer consumption. • Combs and spacers available in 0.5 & 1 mm thickness. • The system has a small footprint area and occupies minimal bench space. CE certified - Yes SPECIFICATIONS : Material - ACRYLIC Unit Dimensions (L x B x H) - 23 x 18 x 27.5 cm Upper Buffer Tank Dimension (L x B x H) - 14 x 7 x 2 cm Lower Buffer Tank Dimension (L x B x H) - 20 x 16 x 19 cm Active Gel Dimension (W x H) - 16 x 14cm Maximum Sample Capacity - 26 Recommended Buffer Volume - Upper Tank : 250 ml Lower Tank : 500 ml Water Circulation Facility - Yes No. of Combs - 13 well Teflon comb 0.5 & 1.0 mm (2 Nos each) No. of Teflon Spacer - 0.5 & 1 mm (4 Nos each) Glass plates - Notched and Rectangular (2 Sets) Clamp & Screws - 4 Sets No. of Platinum Electrode - Red and Black (1 Pair) Gasket - Fixed Connecting Cord - Red and Black (1 Each) Recommended power supply - E12377 & E12378
