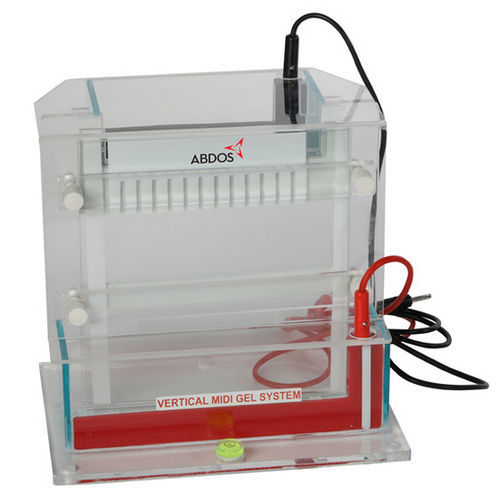

Manual electrophoresis system E12276

benchtopvertical

• The system is a single plate 16 x 14 cm midi-gel unit a simple, non-cooled cost-effective solution for low throughput PAGE. • Low buffer volume within the inner chamber of the GRM and bottom reservoir economises buffer consumption. • Ventilation holes in the system prevent the build-up of condensation during electrophoresis. • Combs and spacers available in 0.5, 1.0 and 1.5 mm thickness. • The system has a small footprint area and occupies minimal bench space. CE certified - Yes SPECIFICATIONS : Material - ACRYLIC Unit Dimensions (L x B x H) - 25 x 20 x 27 cm Upper Buffer Tank Dimension (L x B x H) - 14 x 6 x 2.5 cm Lower Buffer Tank Dimension (L x B x H) - 20 x 6 x 6 cm Active Gel Dimension (WX H) - 16 x 14cm Maximum Sample Capacity - 13 Recommended Buffer Volume - Upper Tank : 150 ml, Lower Tank : 200ml No. of Combs - 13 well Teflon comb, 0.5, 1.0 & 1.5 mm (1 Nos each) No. of Spacer - 0.5, 1 mm & 1.5 mm (4 Nos each) Glass plates - Notched and Rectangular (2 Sets) Gasket - Fixed Clamp & Screws - 4 Sets No. of Platinum Electrode - Red and Black (1 Pair) Connecting Cord - Red and Black (1 Each) Recommended power supply - E12377 & E12378
