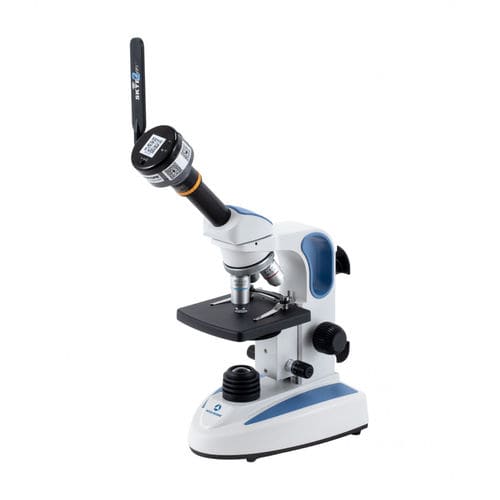

Optical microscope EXM-15 series
laboratorymonocularbenchtop

optical microscope
optical microscope
optical microscope
Add to favorites
Compare this product


Characteristics

Type
optical
Applications
laboratory
Microscope head
monocular
Configuration
benchtop
Light source
LED
Options and accessories
USB
Other characteristics
WiFi
Weight

17 lb
(7.7 kg)

Length

238 mm
(9.4 in)

Width

184 mm
(7.2 in)

Height

381 mm
(15 in)

Description

Includes SKYE WiFi 2 camera and 0.5x camera adapter; 5MP camera fits into the eyetube or teaching tube; use SKYE View 2 Android or iOS app to operate camera in WiFi mode; connect to Windows PC via WiFi or USB cable; up to 10 mobile devices can be connected simultaneously to one camera (for the latest version of SKYE View 2 PC app, visit here: https://accu-scope.com/support/software-updates Optical System: DIN Optical System, f=160mm. Viewing Head: Monocular inclined head or Monocular dual inclined teaching head, inclined 45°and 360° rotatable; Monocular inclined head 45° with vertical teaching viewer. Eyepieces: WF10x eyepiece, 18mm field of view with pointer. Eyepiece is locked-in to prevent classroom tampering. Nosepiece: Rear facing quadruple, ball bearing nosepiece with positive click stops to ensure parcentration. Objectives: Standard configuration includes DIN achromat 4x, 10x, 40xR* and 100xR* oil objectives. (*spring-loaded). Stage: Stage size 119mm X 119mm factory installed double-plate mechanical stage with low position controls and iris diaphragm. Condenser: N.A. 1.25 Abbe condenser with iris diaphragm on spiral mount. Stand: Cast alloy aluminum with built-in carry handle and cord hangers. Illumination: Variable and rechargeable LED illuminator. LED illuminators will last approximately 4 hours on a single charge and the expected bulb life is 20,000 hours. 3500mAh NiMH rechargeable battery. Focusing System: Separate coarse and fine focus adjustment controls. A tension adjustment is on the coarse control. A built-in slip clutch system and pre-set focus stop prevents accidental damage to objectives and slides.
