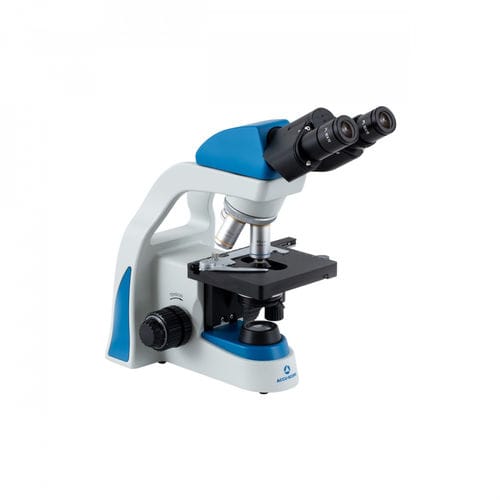

Optical microscope EXC-100

laboratorybinocularbenchtop

DIN Optical System, f=160mm, Anti-Mold Viewing Head: Binocular; Inclined 30° and rotatable 360°; Single diopter adjustment; Interpupillary distance adjustment 50-75mm Eyepieces: WF10x/18mm field of view; a pointer is standard in one eyepiece; eyepieces are locked in to prevent tampering Nosepiece: Rear facing, quadruple, ball bearing with positive click stops to ensure parcentration Objectives: Achromat objectives; 4x, 10x, 40xR* and 100xR oil* -- (*spring-loaded) Stage: Double-layer mechanical stage; size 115mm x 125mm; right hand control; vernier scale Condenser: N.A. 1.25 Abbe condenser with iris diaphragm and filter holder Stand: Cast alloy aluminum; built in fixed focus stop allows for rapid focusing while protecting specimens; built-in carry handle and cord hanger Illumination: Variable LED illumination, 0.2W; bulb life rated for 20,000 hours; rechargeable Focusing System: Coaxial coarse and fine focus with adjustable tension control, 13mm focus travel; focus travel lock; all metal gears Power: Power adapter delivers 5V1A to microscope from 100V-240V input Accessories: Dust cover and instruction manual included Certification: ISO 9001: 2018 and ISO 14001: 2018; UL listed; CE Warranty: 5-year limited warranty for parts, labor and electronic components; 1-year warranty on LED bulb
