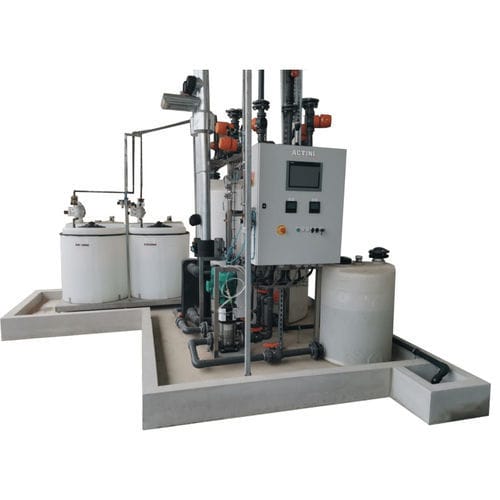

Effluent treatment system CNS series

ACTINI Continuous Neutralization Systems (CNS) have been specially designed to adjust the pH of effluent from ULTIMATE, ULTIMATE PLUS and FDS type Continuous Decontaminators. They can also handle wastewater from other sources, such as CIP, washing or other acidic or basic wastewater. This standardized, cost-optimized equipment enables high-flow neutralization and, thanks to its compact dimensions, can be adapted to small spaces. Product Highlights Fonctions Main functions: • Caustic and acid injection • Buffer tank" function • Dilute, mix and adjust pH to correct value Composition • Polyethylene neutralization tank • Polyethylene control tank • Pumping skid with high-flow centrifugal pump • Control cabinet Operation : Fully automatic operation Automatic injection of caustic and acid to neutralize effluent pH The neutralization tank’s role as a “buffer tank” smoothes out pH variations caused by acidic or caustic effluents entering the neutralization system. The volume of the tank enables a sufficient contact time (30 minutes) to be maintained to generate the chemical neutralization reaction without any residual reaction after pH control. The pH adjustment in the tank is automatically managed by the pH probe located in the recirculation loop, which controls the acid and soda injection pump. The mixing pump stirs the tank volume with an hourly flow rate of over 5 times its volume, ensuring optimum dilution and mixing of the concentrated chemical solutions injected. The control tank is used to take a sample from the neutralization tank to validate the pH value and enable the volume to be drained.
