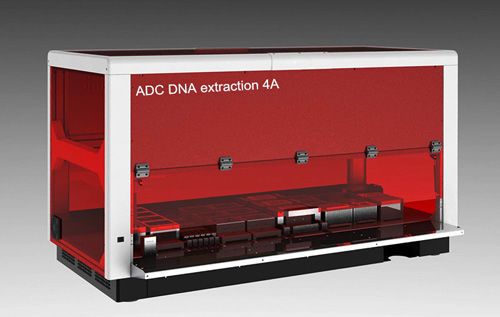

Clinical diagnostic DNA extractor 2/100

DNA extraction and PCR preparation systemsare designed to precisely process all steps required for these complex and time consuming applications on an automated platform. Sample pipetting, reagent dispensing, magnetic particle pipetting, separation and washing and the final transfer of the obtained DNA to the PCR tubes are performed in an environment protected from contamination. The content is for reference only. For further information on technical details,specifications and applications please contact Addcare representative. The content of this can be updated without prior notice. Addcare reserves the right of final interpretation. Tip racks - One tip rack holding up to 4 sets of 96 tips (up to 384 tips in total) Tip eject station - With a waste container installée! below the worktable Reagent carriers - 6 - holding - 24 - throughs Plate carriers Each plate carrier can hold up to 4 microplates 2 for 8 micropolates 2 for 8 microplates 3 for 12 microplates Tube carriers 6 holding 144 tubes Each sample tube carrier can hold up to 24 tubes with a diameter of 12mm Worktable size W*D mm 1195*725 1195*725 1595*765 Independent pipetting channels 2 4 8
