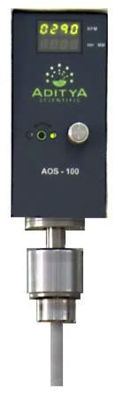

Overhead stirrer AS-100

sample preparationdigital

Aditya Scientific Overhead Stirrer AS-100 is a laboratory device which is used for mixing, homogenizing, suspending and recirculating large volumes of high-viscosity substances, which typically cannot be handled by a magnetic stirrer. Our overhead stirrers are suitable for simple lab stirring application as well as for stirring application in a jacketed reactor. Aditya Scientific Overhead Stirrer AS-100 stands out due to its special features like digital display, stirring speed, torque and safety. Technical Specifications: - Specifications - MODEL AS-100 Power In/Out watt - 100/90 Gears - 2 Speed Range RPM - 10 - 1000 Change of Direction - Yes Rotation Speed Indicator - Digital Speed Control - Electronic Max. Torque - 300 Ncm Overload Protection - Yes / Cut off Motor Protection - Temperature Monitor Software Max. Viscosity - 200000 mPas Interface - RS485 (optional) Max. Volume H₂O - 80 L Duty Cycle - Continuous Timer - Yes Stirrer Shaft Max. Dia. - 10.5 mm Dimension of Device - 70mm x 200mm x 120mm >Support Rod Dimension - Ø12mm x 160mm Protection Class - IP 54 Electrical Supply - 230V AC / 50 Hz
