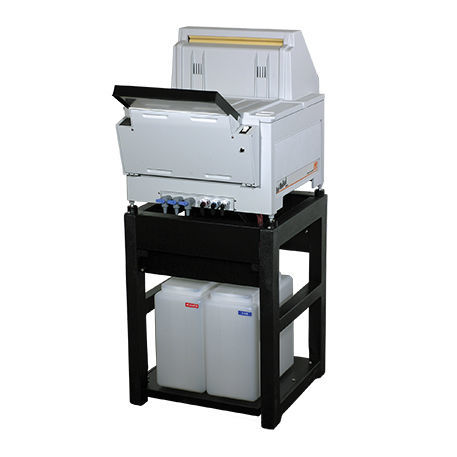

Veterinary X-ray film processor Mini-Med 90™

World Renowned Dependability & Highest Quality Images 90 Second processing cycle – 90 Films per Hour EP version processing time is 180 seconds for greater clarity in mammography Accepts all standard film sizes Visual indicators alert operators for simple operation Designed to minimize water consumption Infra-red Dryer conserves energy while drying films rapidly Easy installation & repair – Worldwide installed base Specifications Dimensions: 33” L x 22” W x 24 ½” H (83.8 cm x 55.9 cm x 62.2 cm) Height of Base: 29″ (74 cm) Weight: Net 100 lbs (45.5 kg) w/solutions 150 lbs (68.2 kg) Materials accommodated: Film Sizes minimum 4″ x 4″ (10 x 10 cm) maximum 14″ x 36″ (36 x 92 cm) Film types - Standard X-ray film suitable for 90 sec. processing (RP) (only for Mini-Med-90™) Chemistry types - Chemistry suitable for rapid processing (RP) Tank capacities 1.9 gal (7.2 liters) Power requirements 115 V. 60 Hz, 1PH, 15 Amp 220 V, 50 Hz, 1 PH, 7.5 Amp 220 V, 60 Hz, 1 PH, 7.5 Amp Water consumption ¼ gal/min (0.9 liters/min)* Drain Requirements 2 gal/min (7.6 liters/min)
