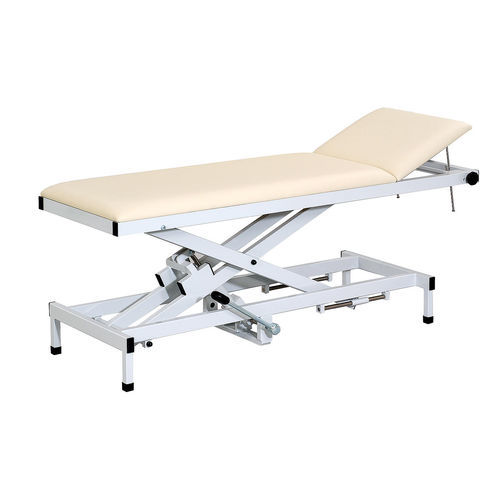

Hydraulic examination table H-U 1065/Y 980

height-adjustablewith adjustable backrest2-section

The 2 section examination tables with hydraulic height adjustment are also available with an extra large stroke. The adjustment range of 480 mm is achieved by a scissor mechanism. The hydraulics, which can be used independently of the power supply, are operated by the built-in foot pump. By stepping down the lever, the pad frame can be adjusted upwards. To lower it, the treadle must be lifted with the foot. The examination table can be lowered to wheelchair height. In the lowest position, the upper edge of the upholstery is at about 500 mm. This makes these hydraulic height-adjustable examination tables from AGA Sanitätsartikel particularly suitable for older, frail or disabled people. The examination tables are available in two frame finishes (lacquered and chrome-plated) as well as three widths. Features The hydraulics are operated by the built-in foot pump. Height adjustment can, of course, also be carried out with heavier patients (up to 200 kg) without any major effort. To be able to operate the hydraulics from both sides, it is possible to install an additional foot lever. This is available at an extra charge. The stability and robustness is achieved by the gusset plates in the frame corners. The frame diagonals and the bottom frame are made of lacquered blank steel. The two upholstery segments (headrest and main surface) each have a thickness of 64 mm. The headrest can be adjusted continuously up to +40° and locked in place by a handle with a clamping rod mechanism. The standard version includes: Floor protectors (clip-on caps) on the four adjustable feet.
