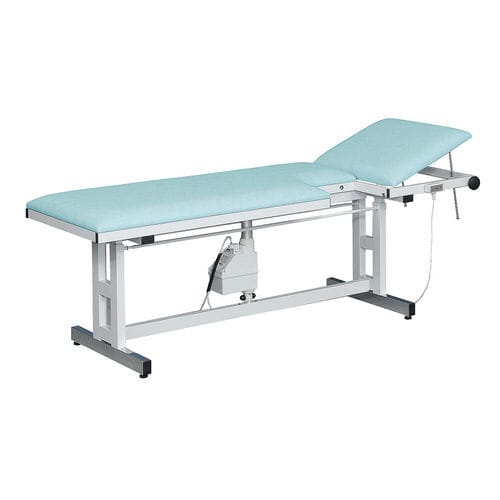

Echocardiography tables from AGA Sanitätsartikel that can be adjusted in height using an electric motor are a third variant alongside the manual and hydraulic height adjustments.
Controlling the motor by hand or foot switch is the easiest and most convenient way to adjust the height of the table. A socket (preferably a floor socket) for the power connection is desirable in the close area of the echocardiography table.
The echocardiography tables with electric height adjustment are also available in two frame finishes (lacquered and chrome-plated) as well as two widths.
A cutout is incorporated into the tabletop surface, especially for cardiac examinations using a transducer.
Features
In order to avoid rocking and swinging movements of the tabletop, these electric height-adjustable echocardiography tables are manufactured with precision double square profiles. As a result, the height is adjusted without lateral offset.
The smooth-running electric motor used is maintenance-free and splash-proof. It is controlled by a hand switch (alternatively - at no extra charge - by foot switch). The height adjustment can of course also be operated with heavier patients .The adjustment system is equipped with a button lock. Motor connection values: 230V, 50/60 Hz, 3.7A, 850W, IPX4, v=11mm/s, 10,000N.
The chrome-plated crossbars of the flat base construction, which are fitted with levelling feet, are more resistant to external influences (e.g. vacuum cleaner knocks etc.) than a plastic-coated version.
The headrest can be adjusted continuously up to +40°. It is locked in place by a handle with a clamping rod mechanism.
