Echocardiography examination table H-EKA 1065/E 965

electricheight-adjustablewith adjustable backrest

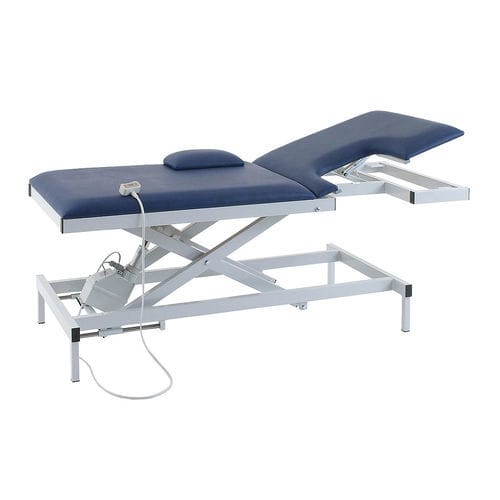

The electric height-adjustable echocardiography tables are also available with an extra large stroke. The adjustment range of 430 mm is achieved by a scissor mechanism. A special cutout is incorporated in the back section for cardiac examinations using a transducer. Controlling the motor by hand or foot switch is the easiest and most convenient way to activate and operate a height adjustment. A socket (preferably a floor socket) for the power connection would be desirable in the close area of the echocardiography table. The echocardiography table can be lowered to wheelchair height. In the lowest position, the upper edge of the upholstery is approx. 535 mm. This makes these electric height-adjustable echocardiography tables from AGA Sanitätsartikel particularly suitable for frail, elderly or disabled people. The echocardiography tables with electric height adjustment are available in two frame finishes (lacquered and chrome-plated) as well as two widths. Features The height adjustment is carried out by an electric motor, controlled by a hand switch (alternatively - at no extra charge - by foot switch). The adjustment system is equipped with a button lock. Motor connection values: 230V, 50/60 Hz, 3.7A, 850W, IPX4, v=11mm/s, 10,000N. The stability and robustness is achieved by the gusset plates in the frame corners. The dimensions of the cutout are 325 x 260 mm (L x W). The frame diagonals and the base frame are made of lacquered blank steel. The headrest can be adjusted +30° in 13 locking steps. The standard version includes: Removable (slide-in) upholstered insert to close the echo cutout and Floor protectors (push-on caps) on the four adjustable feet.
