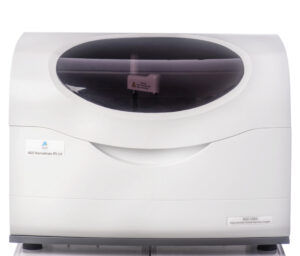

Automatic clinical chemistry analyzer AGD2260

for clinical diagnosticbenchtopwith STAT port

Measuring principles: Absorbance photometry Turbidimetry ,End-point,Two-point, Kinetic,/Dual/ reagent chemistries,monochromatic /bichromatic 8 step laundry system Memory Upto 200,000 patient data User friendly intellectual software Independent mixing probe TECHNICAL SPECIFICATION: Reaction system 90 Special cuvettes Length of cuvette – 6mm Reaction time – 8 – 10 mins Reaction temperature:37±0.1°c Methodology Measuring principles: Absorbance photometry, Turbidimetry ,End-point, Two-point, Kinetic,/Dual/ reagent chemistries,monochromatic /bichromatic Power Requirements Power supply AC100-240V, 50-60Hz 1 KVA Sample Arrangement Compatible with primary collection tube, minimal tube, sample cup, etc Operating configuration Operation system Windows 2000 or XP Interface RS-232 Memory Upto 200,000 patient data Temperature 10°c-35°c Humidity upto 90% with no dew Reagent arrangement Reagent Probe – Liquid level detection, collision protection function On board cooling ( 2°c- 8°c ) Laundry system Needles: 8 step washing sequence. Water Consumption- Upto 4 l/hr Mixing system Independent mixing probe Optical system 9 wavelengths: 300-700nm Tungsten halogen lamp Absorbance range:0-4.00Abs Spectrophotometry; rear spectrophotometry
