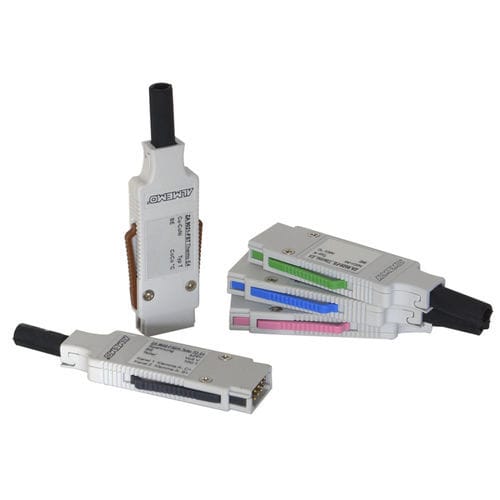

DIN connector ALMEMO® D7

for sensorsflexible

The intelligent programmable ALMEMO® input connectors for digital and analog sensors turn any measuring arrangement into an extraordinarily flexible measuring system. Instead of the preassembled ALMEMO® sensors, your own existing transducers can also be used. For this purpose, pre-programmed ALMEMO® connectors are available with the necessary sensor parameters and the appropriate measuring range. The plugs have six screw terminals and are easy to connect. Intelligent ALMEMO® Connectors With all instruments and connectors it is possible to assign a designation to each measuring point, to scale sensor signals and to correct the measured value in zero point and slope. Some measuring instruments with ALMEMO® connectors offer the possibility to store multi-point calibrations in the connector, to program own linearizations with up to 30 points into the connector and to enter simple calibration points with setpoint and actual value table via the ALMEMO® Control software. Likewise, any special measuring ranges programmed in the connector can be processed and exact connector designations can be queried; the calibration dates are managed in the connector and automatically recognized. This digital sensor technology increases the functions and accuracy of the flexible ALMEMO® measurement technology.
