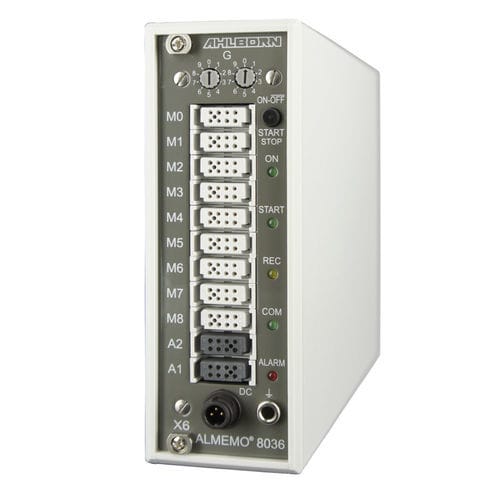

Laboratory tester ALMEMO® 8036

temperaturecalibrationhumidity

Reference measuring instrument for temperature and humidity Multi-channel measuring instrument with nine measuring inputs for Pt100 sensors and Pt100 psychrometers High-precision measuring with resolution of 0.001 K For use either as PC interface or with external memory connector as data logger Technical data and functions Multi-channel instrument for high-precision measuring Reference measuring instrument ALMEMO® 8036-9 ensures very high levels of resolution, precision, and linearity when measuring temperature, using up to nine Pt100 sensors - or alternatively up to four Pt100 psychrometers. This reference measuring instrument is suitable for use as calibration standard in calibration laboratories, for quality assurance procedures, or as a multi-channel instrument for high-precision measuring operations, e.g. in test and measuring rooms or climate chambers. Reference measuring instrument ALMEMO® 8036‑9 operates with special ALMEMO® plugs incorporating expanded programming possibilities. These plugs, it should be noted, cannot be interchanged with the ordinary plugs used with ALMEMO® V6 / V7 measuring instruments. Very high precision thanks to multi-point adjustment and input of coefficients for the Pt100 characteristic This very high level of precision is achieved by calibrating the measuring chain comprising Pt100 sensor and measuring instrument. For each individual sensor there are two error correction methods available. 1. Multi-point adjustment in up to 35 temperature points Sensors are identified by means of a programmable 10-character alphanumeric designation stored in the sensor connector and a serial number.
