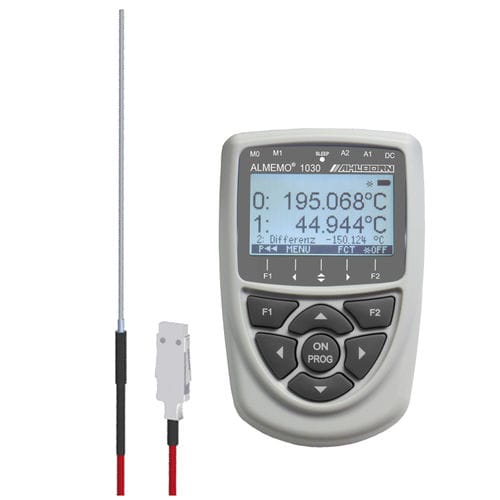

Temperature measurement with very high resolution, precision, and linearity, using Pt100 sensors
Suitable as reference device in calibration laboratories and quality assurance procedures
Very high accuracy thanks to multi-point adjustment of the Pt100 temperature sensor
2 electrically isolated measuring inputs for Pt100 sensors
Resolution can be set to 0.001 or 0.01 K.
Units °C, °F, K
High-resolution A/D converter, delta-sigma, 24-bit, 1.25 mops (measuring operations per second)
Two output sockets for digital interface, ALMEMO® memory connector
Compact, modern, ergonomic design
Graphics display, illuminated with white light
Easy and convenient to operate by means of 4 soft-keys and cursor block
Measured value display 2 measured values and differential
Measuring functions: Zero-setting, smoothing, maximum / minimum values, individual value memory for 100 values
Data logger with ALMEMO® memory connector (accessory)
Sensor programming: Smoothing, designation, units, resolution
Device configuration: Illumination, contrast, device address, baud rate
