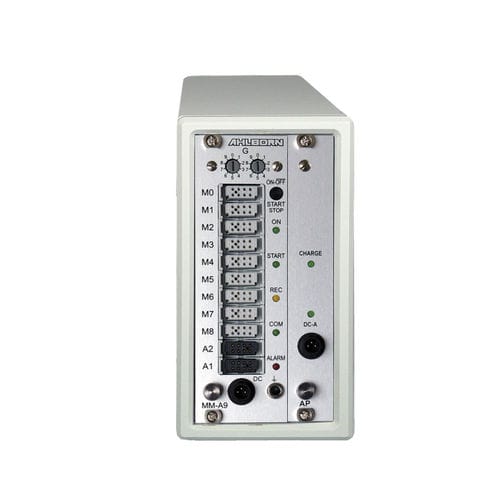

Universal data-logger ALMEMO® 8590

ALMEMO® precision measuring instrument for measured data acquisition, with data logger function Comprehensive range of functions for all application areas Increased measuring accuracy, fast measuring rate 9 measuring inputs Operates as data logger or PC interface also with rechargeable batteries Technical data and functions Increased measuring accuracy and stability Fast measuring rate, up to 50 measuring operations per second. With SD memory card, up to 100 mops, optional for 1 channel up to 400 mops 9 measuring inputs, electrically isolated Over 65 standard measuring ranges Support for ALMEMO® plugs with multi-point adjustment, special linearization, and special measuring ranges Option KL for independent multi-point adjustment or special linearization programmable in 30 points and management of calibration data saved in the sensor connector and the measuring instrument Higher measuring quality thanks to electrical isolation between measuring inputs and device power supply (device ground) Improved cold junction compensation with 2 sensors Data logger option Internal EEPROM sufficient for 100,000 measured values (option S) configurable as linear or ring memory - or memory connector with micro SD (accessory) Sleep mode for long-term recording 2 ALMEMO® output sockets, suitable for digital interfaces, analog output, trigger input, alarm contacts, memory card 5 LEDs for indicating various operating states Key for switching on and start / stop measuring Complete sensor and device programming by means of ALMEMO® Control software (included in delivery).
