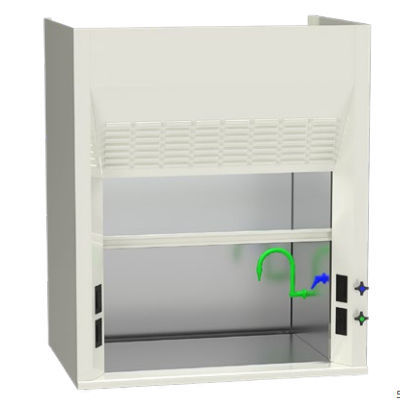

Perchloric acid handling fume hood Eliminator 700

laboratorybenchtopstainless steel

The Eliminator 700 Perchloric Acid Hood has the same aerodynamic design as the 100 series, with a 45-degree angle around the fascia and a flush-mount radiused airfoil across the bottom to minimize turbulence and provide increased performance. Perchloric Acid Hood - For Safe Handling of Perchloric Acid • Powder coat finish • Full frame construction • Shaft drive sash • LED light with bulbs • Flush-mount airfoil • Full-length finger lift • Louvered front for by-pass • 316 stainless steel one-piece integral work surface and liner. • Built-in trough • Manual washdown • Stainless steel sash • Stainless steel airfoil This hard-working hood also features a built-in trough to capture runoff in washdown procedures where perchloric acid is in use. In addition, there is a manual washdown feature for the areas behind the baffles as well as the duct-collar areas. The interior is fabricated of type 316 stainless steel, integrally welded to a 316 stainless steel work surface, then buffed and polished to a #4 finish. The top is 1-1/4” with a 1/4” dish to retain spills. The airfoil and sash are also made of 316 stainless steel. The EH-700 is built tough to withstand the daily use of perchloric acid, while keeping the workplace safe.
