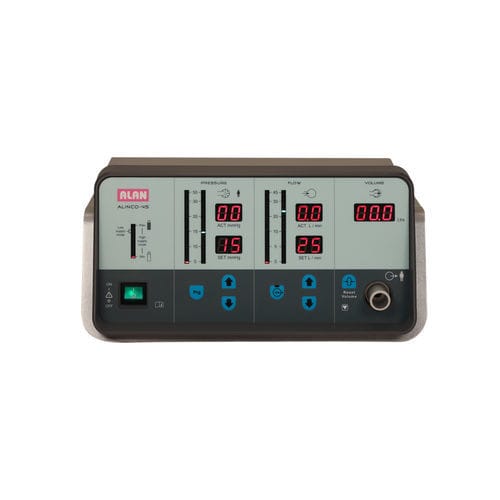

Adult endoscopy CO2 insufflator ALINCO - 30

pediatricinfantwith gas preheating

Wide Input Supply: 88VAC ~ 275 VAC (50/60Hz) Max. Flow 45 LPM Flow setting range 0.1 to 45 LPM Pressure setting range 1 to 30mmHg Digital and bargraph display for flow and pressure Real-time leakage compensation Built-In Gas Warmer. Works directly with High Pressure CO2 Cylinder (70 bar Max). Works with centralized CO2 connection also. Excess pressure release system. Weight 7 Kg (Max). GENERAL FEATURES : Advanced micro controller based technology Works with wide input range. No need of stabilizer due to wide operating range design. Independent display for set pressure and actual pressure in bar graph and digital display. Independent display for set flow and actual flow in bar graph and digital display. Cylinder pressure bar graph display Separate display for Total volume (CO2 consumption in liters). 9 User program memories for different surgeries as per Surgeon's preference. Real-time pressure and flow control. Redundant excess pressure release system for maximum safety. Power up self-test to ensure unit healthiness. Easy flow " Start/Stop" control. Separate key for volume reset. Ergonomic design.
