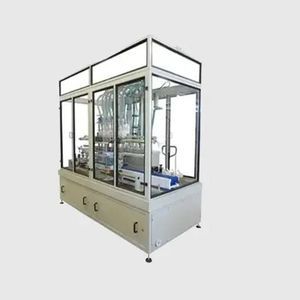

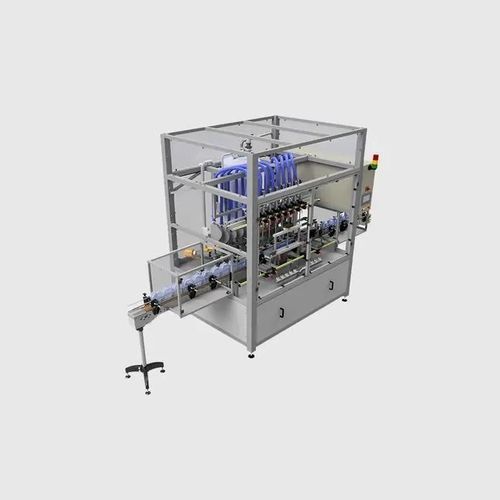

Pneumatic filling machine APOLLO FM

linearhorizontalfloor-standing

Linear filling machines based on flow meters are used if it is necessary to achieve a high precision of filling and repeatability of the doses, such as in the food, pharma and cosmetic industry or in petro-chemistry. Machines based on flow meters can easily be cleaned using CIP/SIP technologies. Filling system using flow meters offer a high reliability and require a minimum maintenance. Mass flow meters eliminate the influence of temperature and can achieve identical doses at various filling temperatures. The capacity of single-line machines reaches from 1,000-5,000 bottles per hour; double-line machines have a capacity of up to 8,000 bottles per hour. Machine frame with height adjustable feets Motorized conveyor with adjustable speed Infeed and outfeed gates Sensor to detect bottles entering to filling area Flowmeters for product dosing Pneumatic lift of filling nozzles (bottom up filling) Closing of filling nozzles Bottle neck support Antidrip tray under filling nozzles Sensor to detect collision of filling nozzles Sensor to detect outcoming bottles from filling area Sensor to detect full conveyor behind the machine Control panel with touch screen Safety guards Product tank made of AISI 304 or AISI 316 Pressurized product tank Product level control Pneumatic product infeed valve Pump for product tank refilling CIP inlet connection Spray ball inside product tank Set of adapters for nozzles cleaning Collection manifold Product dosing pump Motorized lift of filling nozzle Motorized horizontal nozzle movement ATEX configuration Chemical proof configuration Food products configuration Remote connection
