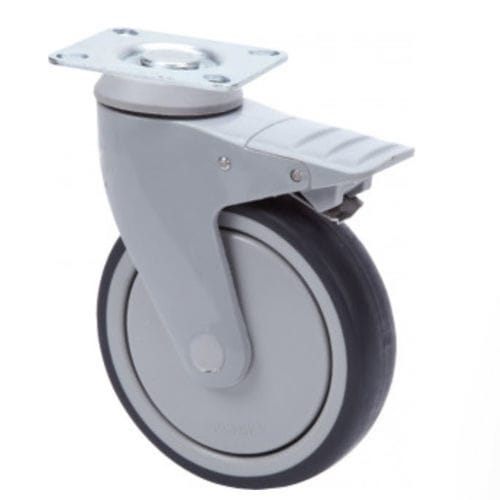

Wheel with brake AN 4-1556polyurethaneswiveling
Add to favorites
Compare this product
Characteristics
- Options
- with brake, polyurethane, swiveling
- Load capacity
80 kg
(176 lb)- Wheel diameter
100 mm
(3.937 in)
Description
Injected grey polyurethane castors. Especially indicated to support high-loads up to 100 Kg. With nylon fibre reinforced bracket.
Our range of AN SERIE castors is recommended for the medium-load sectors. It is used in: labor rooms, hospitals, radiology, wheelchairs, operation beds, first aid rooms and intensive care beds.
Noiseless castors, floor protection, resistant to oils and grease.
Fitting Type
Plate
Braking System
Wheel Brake And Fork
Material
Rubber
Bearing
Ball
Width of tyre (mm)
32
Plate dimensions (mm)
67x77
Distance between holes (mm)
62x52/55x46
Plate hole diameter (mm)
8
Offset (mm)
88
Overall height (mm)
141
Unit Weight of the wheel (kg)
0.8
Volume (cm3)
1144
Brackets
Nylon glass fibre-reinforced synthetic bracket.Hardened double ball raceways.Double brake: wheel and bracket.Manufactured to European standards EN 12530.
