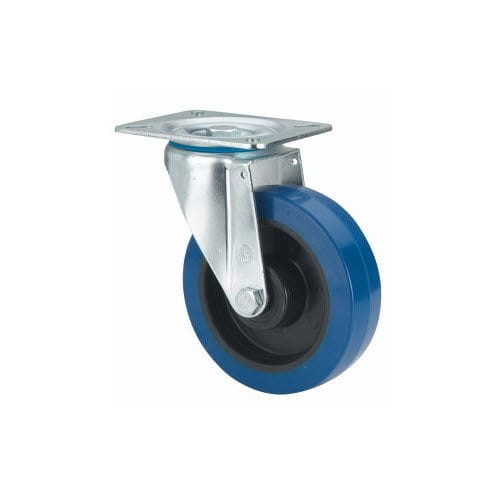

Swiveling wheel PGM 2-3497

rubberpolypropylene

Elastic blue rubber castors. Especially indicated to support high-loads up to 400 Kg. It is used in: logistics transport tools, repair shops, tool trolleys, tubular carts, internal logistics, pneumatic factories, internal logistics, transport tools, food trolleys, kitchens, canteens, dining rooms, supermarkets, containers, roll containers, transport cages, sound boxes and mobile platforms. Suitable for mechanical engineering projects by draftsmen and project executors. PGM: does not leave marks on floor. High absorption to impacts and vibrations. Smooth and noiseless castors. Elastic. Fitting Type Plate Braking System Without Brake Material Rubber Bearing Roller Width of tyre (mm) 34 Plate dimensions (mm) 105x80 Distance between holes (mm) 86/80x60 Plate hole diameter (mm) 8 Offset (mm) 77 Overall height (mm) 110 Unit Weight of the wheel (kg) 0.62 Volume (cm3) 1140 Brackets Made of pressed steel up to 4 mm.Finish: zinc plated finish.Double ball bearing in the swivel head.Universal model for medium-duty loads.Manufactured to European standards EN 12530/12532. Wheel Blue elastic rubber tyre on polypropylene centre Temperature range: -20º ÷ +70º Rolling ResistenceReasonable Noise during the marchExcelent Floor ProtectionExcelent
