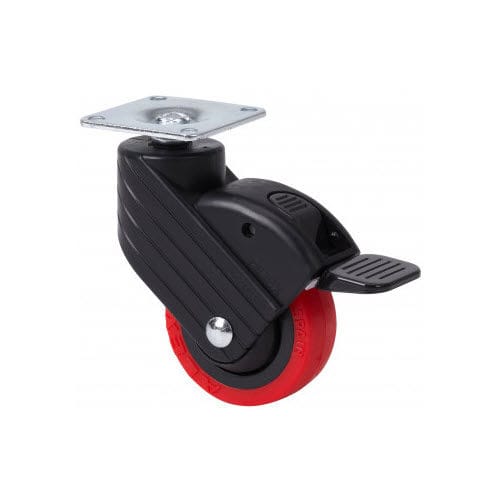

Wheel with brake PPI 1-0762

polyurethanepolyamidepolypropylene

Red injected polyurethane castors, especially indicated to support high-loads up to 30 Kg. It is used in: display stands, furniture sector, catering, commercial furniture, drips, stools, furniture, labor rooms, hospital equipment, clinical furniture, drip holders and mobile carts. PPI: noiseless and multipurpose. Easy to move. Fitting Type Plate Braking System Wheel Brake Material Polyurethane Bearing Plain Width of tyre (mm) 18 Plate dimensions (mm) 42x42 Distance between holes (mm) 32x32 Offset (mm) 52 Overall height (mm) 84 Unit Weight of the wheel (kg) 0.1 Volume (cm3) 349 Brackets Made of heavy duty polyamide. Bracket with plate and threaded stem. Available with and without brake. Rounded ergonomic brake with flushed recess. Especially designed for the furniture and catering sectors. Optional bespoke colouring Manufactured to European Standard EN 12528 Wheel Red polyurethane tyre on black polypropylene centre. 95º shore A Temperature range: -25º ÷ +80º Rolling ResistenceVery Good Noise during the marchVery Good Floor ProtectionVery Good
