Roller mill PGS 165 A

pharmaceutical industrywith graterwith shredder

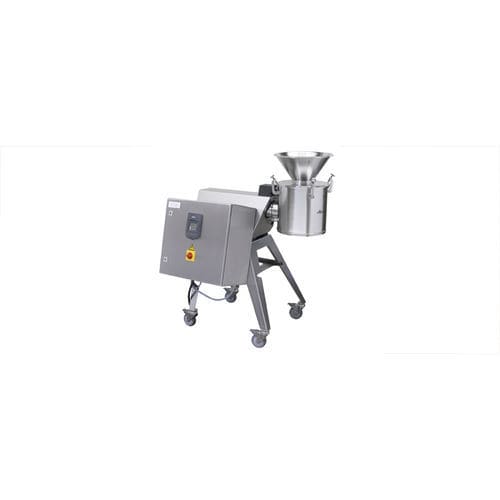

The PGS 165 A has been developed by Alexanderwerk as a detachable unit to a universal drive motor of the UM series. The grater/shredder is designed to meet the requirements and standards in the chemical, pharmaceutical and food industries as well as for LifeScience and nuclear technology. The PGS 165 A is made for grating, shredding, crushing, desaglomerating, granulating of solid dry or humid substances. The UM universal drive motor has an intgrated quick release coupling via which a variety of slip-on attachments can be mounted on the UM. Such attachments may be optionally the rotor fine granulator RFG 150 DA or the grater/shredder PGS 165 A. Depending on the raw material and grating or shredding cylinder, the throughput can be as high as 1,000 kg/h. Grating and shredding cylinder with holes are available to achieve different granule geometries. Moreover, the mobile design provides great flexibility during granulation and allows an easy maintenance. TECHNICAL DATA throughput, continuous operation - up to 1,000 kg/h diameter working cylinder - 165 mm height working cylinder - 105 mm holes grating cylinder - 1.0 – 6.0 mm holes shredding cylinder - 2.2 – 12.0 mm weight - approx. 80 kg dimensions (HxWxD) - approx. 1,100 mm x 900 mm x 1,250 mm
