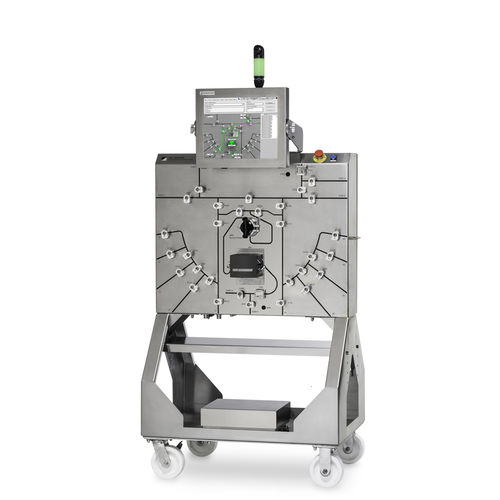

Fully automated sample preparation system AFH

laboratoryfor the pharmaceutical industryfor liquid handling

Alfa Wassermann's fluid handling system fully automates and standardizes the critical process of fluid filling and fractionation in a self-contained mobile work station. AFH software comes pre-loaded with standard fluid handing protocols. Custom protocols that include sanitation, rinsing, filling, fractionation and other methods can be programed on site by the user. Network integration is available to utilize upstream/downstream inputs and outputs via open platform communication (OPC). Fluid routing pinch valves Flow rate and direction control pump Flow, pressure, and temperature product sensors Fully automated filling and fractionation of ultracentrifuge density gradient process. page-iconCompact, mobile and self-contained with reservoir and process bag storage shelf. screen-iconOperator programmable standard and customized process steps, directions-iconReal time display and stored reporting of critical process parameters. Standard and customizable processes Model existing SOP’s Repeatable sequences without variation can result in more consistent batches Simplifies operator training Reduces procedural errors that can result in rejected batches Domain authentication of system operators Eliminate the need for special operator databases and database maintenance by integrating with existing facility security policies SQL Server database stores all methods, batch data and audit logs All information is stored locally in a 21 CFR Part 11 compliant database Access to all data is provided to the facility system administrator
