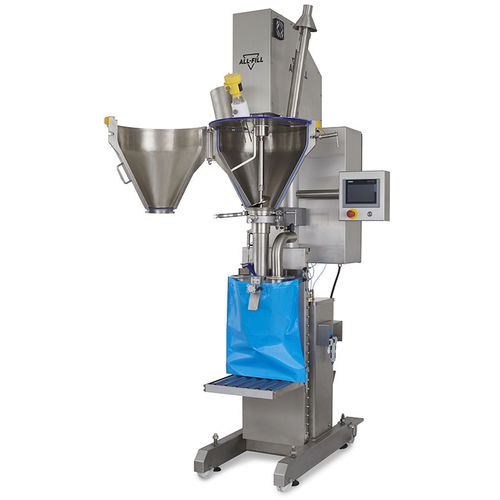

Continuous filling machine SACK

pneumaticweightAuger

Designed specifically to fill larger sacks and bags, the Series 10 Sack Filler has a fill weight range of 1kg to 25kg. The All-Fill Series 10 Sack Filler has been specifically designed to accommodate a wide range of sack and bag sizes. The highresolution digital strain-gauge load cell provides the signal for filling to stop, eliminating inaccuracies caused by products of inconsistent density. An electro-pneumatic clamp with easylocation presentation guides allows the operator to quickly place the sack/bag beneath the nozzle ready for filling. Fully integrated loadcell Electro‐pneumatic sack clamp All stainless steel contact parts No‐tools removable change parts Augers machined from solid Large capacity hopper Siemens plc‐based weigh‐fill control via full colour touch‐screen HMI Bag sizes from 1kg to 25kg Servo drive 2‐speed bulk fill and top‐up Bulk fill and feed forward Multi‐stage filling Split hopper Mobile base Bulk feed accessories
