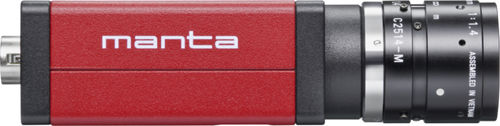

Manta is Allied Vision’s most versatile GigE Vision camera series. It provides the largest choice of image sensors and its advanced feature set simplifies the setup of multi-camera applications. With its modular hardware concept, Manta offers nearly endless configuration possibilities to adapt the camera to your application.
SPECIFICATIONS
Interface - IEEE 802.3 1000BASE-T, IEEE 802.3af (PoE) optional
Resolution - 1388 (H) × 1038 (V)
Sensor - Sony ICX285
Sensor type - CCD Progressive
Sensor size - Type 2/3
Pixel size - 6.45 µm × 6.45 µm
Shutter mode - Global shutter
Lens mounts (available) - C-Mount, CS-Mount
Max. frame rate at full resolution - 15 fps
ADC - 12 Bit
Image buffer (RAM) - 32 MByte
IMAGING PERFORMANCE
Imaging performance data is based on the evaluation methods in the EMVA 1288 Release 3.1 standard for characterization of image sensors and cameras. Measurements are typical values for monochrome models measured at full resolution without optical filter. Contact Sales or AE for more information.
Quantum efficiency at 529 nm - 54 %
Temporal dark noise - 10.4 eˉ
Saturation capacity - 18100 eˉ
Dynamic range - 64.3 dB
Absolute sensitivity threshold - 11.0 eˉ
Bit depth - 8/12 Bit
Monochrome pixel formats - Mono8, Mono12, Mono12Packed
Raw pixel formats - BayerRG8, BayerRG12Packed, BayerRG12
OPERATING CONDITIONS/DIMENSIONS
Operating temperature - +5 °C to +45 °C ambient (without condensation)
Power requirements (DC) - 8 to 30 VDC AUX or IEEE 802.3af PoE
Power consumption - External power: 3.7 W at 12 VDC | Power over Ethernet: 4.3 W
Mass - 200 g; 210 g (PoE)
