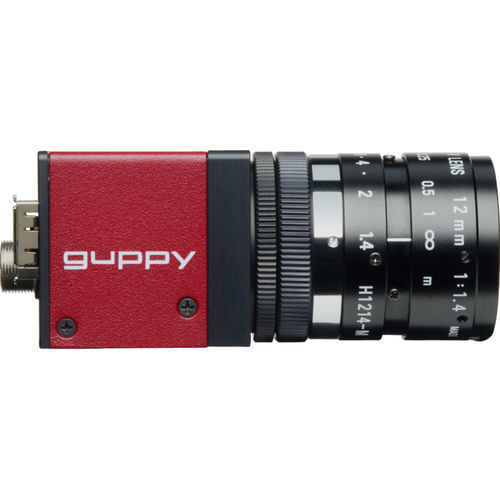

Ophthalmology camera Guppy F-033

VGACCD

Guppy is an ultra-compact, inexpensive IEEE 1394a VGA machine vision camera. This reliable mainstream FireWire camera addresses a wide range of imaging applications. With its ultra-compact, small housing, Guppy is the perfect fit for all applications with space constraints. SPECIFICATIONS Interface - IEEE 1394a - 400 Mb/s, 1 port Resolution - 656 (H) × 494 (V) Sensor - Sony ICX424 Sensor type - CCD Progressive Sensor size - Type 1/3 Pixel size - 7.4 µm × 7.4 µm Lens mount (default) - C-Mount, CS-Mount Max. frame rate at full resolution - 58 fps ADC - 10 Bit OUTPUT Bit depth - 8 Bit Monochrome pixel formats - Mono8 Raw pixel formats - Raw8 OPERATING CONDITIONS/DIMENSIONS Operating temperature - +5 °C to +45 °C Power requirements (DC) - 8 V to 36 V Power consumption - <2 W (@ 12 VDC) Mass - 50 g Body dimensions (L × W × H in mm) - 48.2 × 30 × 30 (including connectors) Regulations - CE: 2014/30/EU (EMC), 2011/65/EU, including amendment 2015/863/EU (RoHS); FCC Class B FEATURES Look-up table (LUT) Area of interest (AOI), separate AOI for auto features Auto gain (0 to 24 dB) Auto exposure (129 µs to 67 s) Auto white balance Storable user sets Accessories Allied Vision approved machine vision accessories have been selected by our experts to deliver best possible image quality to your application with the greatest possible reliability. Our technicians and engineers conduct extensive tests with accessories such as lenses and interface cables in combination with our cameras. That way, we can recommend the best possible accessories and ensure maximal performance of your Allied Vision camera.
