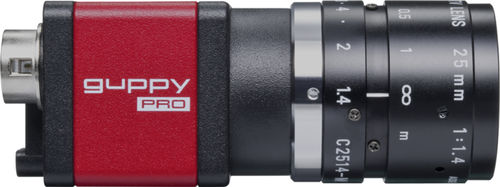

Medical camera Guppy PRO F-201

digitalCMOSCCD

The Guppy PRO is Allied Vision’s smallest economical FireWire camera. Its ultra-compact and extremely robust industrial housing unites quality with performance and enables it to be integrated in the smallest spaces. The wide range of CCD and CMOS sensors with a range of different reso- lutions enables you to choose the ideal Guppy PRO for your particular needs. SPECIFICATIONS Interface - IEEE 1394b - 800 Mb/s, 1 port Resolution - 1624 (H) × 1234 (V) Sensor - Sony ICX274 Sensor type - CCD Progressive Sensor size - Type 1/1.8 Pixel size - 4.4 µm × 4.4 µm Lens mount (default) - C-Mount Max. frame rate at full resolution - 14 fps ADC - 12 Bit OUTPUT Bit depth - 8-12 Bit Monochrome pixel formats - 8/12/16 Raw pixel formats - 8/12/16 OPERATING CONDITIONS/DIMENSIONS Operating temperature - +5 °C to +45 °C Power requirements (DC) - 8 V to 36 V Power consumption - <3.5 W (@ 12 VDC) Mass - 80 g Body dimensions (L × W × H in mm) - 44.8 × 29 × 29 (including connectors) Regulations - CE: 2014/30/EU (EMC), 2011/65/EU, including amendment 2015/863/EU (RoHS); FCC Class B FEATURES Look-up table (LUT) Gamma correction Color correction Area of interest (AOI), separate AOI for auto features Binning Sub-sampling Auto gain (manual gain control: 0 to 24.4 dB) Auto exposure (55 µs to 67 s) Trigger programmable, level, single, bulk, programmable delay Storable user sets Scope of delivery Camera and IEEE 1394b cable (other configurations on request) Accessories Allied Vision approved machine vision accessories have been selected by our experts to deliver best possible image quality to your application with the greatest possible reliability.
