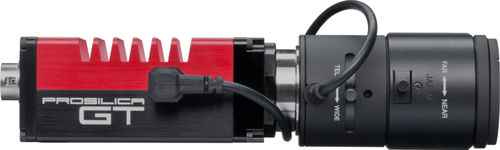

Microscopy camera Prosilica GT 2000NIR

medicaldigitalhigh-definition

The rugged housing optimized for heat dissipation makes Prosilica GT the ideal solution for harsh environments. The various lens control options allow constant adjustment of the image brightness to changing light conditions. Offering resolutions of up to 31 megapixels, they are ideal for high-definition imaging applications with demanding requirements of robustness and design-in flexibility. SPECIFICATIONS Interface - IEEE 802.3 1000BASE-T, IEEE 802.3af (PoE) Resolution - 2048 (H) × 1088 (V) Sensor - CMOSIS/ams CMV2000 NIR Sensor type - CMOS Sensor size - Type 2/3 Pixel size - 5.5 µm × 5.5 µm Shutter mode - Global shutter Lens mounts (available) - C-Mount, CS-Mount, F-Mount, M42-Mount Max. frame rate at full resolution - 53.7 fps ADC - 12 Bit Image buffer (RAM) - 128 MByte IMAGING PERFORMANCE Imaging performance data is based on the evaluation methods in the EMVA 1288 Release 3.1 standard for characterization of image sensors and cameras. Measurements are typical values for NIR models measured at full resolution without optical filter. Quantum efficiency at 529 nm - 80 % Quantum efficiency at 850 nm - 44 % Temporal dark noise - 13.9 eˉ Saturation capacity - 9400 eˉ Dynamic range - 56.3 dB Absolute sensitivity threshold - 14.4 eˉ OUTPUT Bit depth - 8/12 Bit Monochrome pixel formats - Mono8, Mono12, Mono12Packed OPERATING CONDITIONS/DIMENSIONS Operating temperature - -20 °C to +65 °C ambient (without condensation) Power requirements (DC) - 7 to 25 VDC AUX or 802.3at Type 1 PoE Power consumption - 3.4 W at 12 VDC; 4.2 W PoE Mass - 210 g
