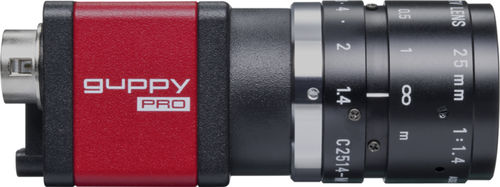

Medical camera module Guppy PRO F-031

VGACCDnear-infrared

The Guppy PRO is Allied Vision’s smallest economical FireWire camera. Its ultra-compact and extremely robust industrial housing unites quality with performance and enables it to be integrated in the smallest spaces. The wide range of CCD and CMOS sensors with a range of different reso- lutions enables you to choose the ideal Guppy PRO for your particular needs. SPECIFICATIONS Interface - IEEE 1394b - 800 Mb/s, 1 port Resolution - 656 (H) × 492 (V) Sensor - Sony ICX618 Sensor type - CCD Progressive Sensor size - Type 1/4 Pixel size - 5.6 µm × 5.6 µm Lens mount (default) - C-Mount Max. frame rate at full resolution - 123 fps ADC - 14 Bit OUTPUT Bit depth - 8-14 Bit Monochrome pixel formats - 8/12/16 Raw pixel formats - 8/12/16 OPERATING CONDITIONS/DIMENSIONS Operating temperature - +5 °C to +45 °C Power requirements (DC) - 8 V to 36 V Power consumption - <3.5 W (@ 12 VDC) Mass - 80 g Body dimensions (L × W × H in mm) - 44.8 × 29 × 29 (including connectors) Regulations - CE: 2014/30/EU (EMC), 2011/65/EU, including amendment 2015/863/EU (RoHS); FCC Class B FEATURES Look-up table (LUT) Gamma correction Color correction Area of interest (AOI), separate AOI for auto features Binning Sub-sampling Auto gain (manual gain control: 0 to 24.4 dB) Auto exposure (75 µs to 67 s) Trigger programmable, level, single, bulk, programmable delay Storable user sets Scope of delivery Camera and IEEE 1394b cable (other configurations on request)
