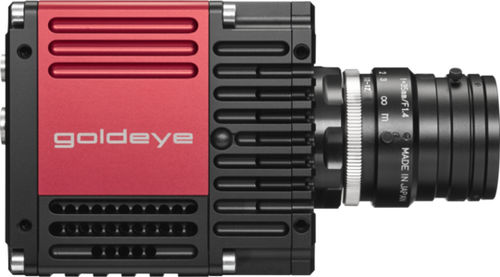

Medical camera module Goldeye G-032 Cool TEC2

digitalVGAhyperspectral

Goldeye cameras are equipped with InGaAs sensor technology making them sensitive in the short wave infrared spectrum ranging from 900 nm to 1,700 nm. Some models have extended sensitivity in the visible spectrum down to 400 nm or up to 2200 nm. All Goldeye SWIR cameras can be operated at very high frame rates and capture outstanding low-noise images. They are the perfect choice for industrial and scientific applications beyond the visible spectrum. All Goldeye models are available with either a Camera Link or a GigE Vision interface. SPECIFICATIONS Interface - IEEE 802.3 1000BASE-T, IEEE 802.3at (PoE+) Resolution - 636 (H) × 508 (V) Sensor - FPA 636 × 508 | 25 µm | InGaAs Sensor type - InGaAs Sensor size - No standard size Pixel size - 25 µm × 25 µm Lens mounts (available) - C-Mount Max. frame rate at full resolution - 100 fps ADC - 14 Bit Image buffer (RAM) - 256 MByte IMAGING PERFORMANCE Temporal dark noise - 400 eˉ (Gain0), 170 eˉ (Gain1) Saturation capacity - 1.9 Meˉ (Gain0), 39 keˉ (Gain1), Dynamic range - 73 dB (Gain0), 47 dB (Gain1), OUTPUT Bit depth - 8 - 14 Bit Monochrome pixel formats - Mono8, Mono12, Mono12Packed, Mono14 OPERATING CONDITIONS/DIMENSIONS Operating temperature - -20 °C to +55 °C (housing) Power requirements (DC) - 10.8 V to 30.0 V or via PoE+ Power consumption - 19 W (at 12 VDC), 22 W (PoE+) Mass - 810 g (with C-Mount adapter) Body dimensions (L × W × H in mm) - 90 × 80 × 80 Regulations - CE: 2014/30/EU (EMC), 2011/65/EU, incl. amendment 2015/863/EU (RoHS); FCC Class B FEATURES Image control: Auto Auto contrast Auto exposure Image control: Other Background correction Binning DPC (defect pixel correction)
