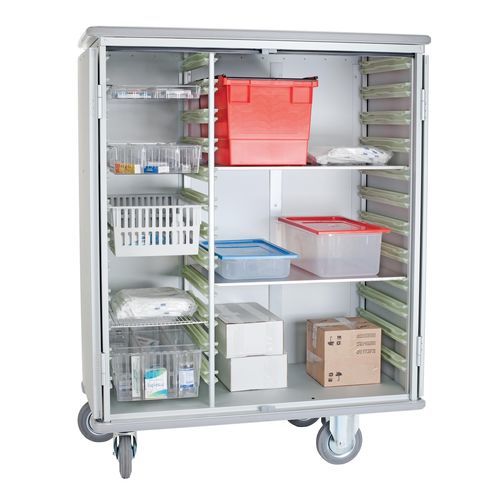

Body in AlMg3 light alloy sheet, anodized (10 micron). Internal frame with 2 sections made in anodized light alloy profiles and nylon fiberglass rails with stopping system. Rails gauge 116,5 mm. One section 2/3 of the total space, with 2 stainless steel movable shelves to be settled on rails, 12 positions. The second section, with a maximum capacity of 12 ISO trays 100 mm h. Double wing door built with 2,5 mm bent sheet and welded reinforcements on top and bottom, opening at 270° with stopping magnet for resting position. Door fastening by one vertical thumb-latch hooking on top and bottom. The truck is equipped with an EPDM gasket on top to grant protection of contents from water and dust. One push-handle on each short side. Strong non-twisting bottom iron frame with epoxy finishing (80 micron). Non-marking grey rubber buffer on bottom and on top. 2 fixed and 2 swivelling wheels dia. 200 mm with non-marking rubber ring and zinc-plated housings.
Rails carrying capacity: 20 kg
Shelf carrying capacity: 60 kg /each
Bottom carrying capacity: kg 100
