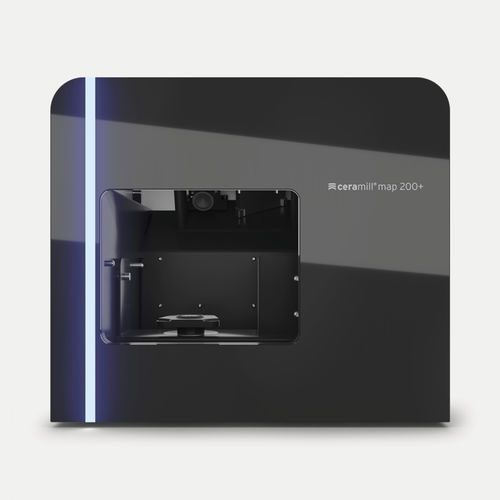

Dental CAD/CAM scanner Ceramill® Map 200+

2-axis

Ceramill Map 200+ is a fully automatic 2-axis stripe light scanner with uncomplicated handling, yet high precision, making it ideal as entry into CAD/CAM technology as well as for users wishing to generate precise scanning data cost-efficiently. Equipped with newly developed "DNA Speed Scanning" strategies and high-resolution 3D sensors, it equals its "big brother", the Ceramill Map 400+, in terms of precision and speed. Together with the automated user guidance system, the Ceramill Map 200+ offers convenience and accuracy on a compact footprint of 390x360x310mm. The Ceramill Map 200+ offers an open interface so that scans (STL files) can also be loaded into other CAD programmes. Your benefits Maximum precision at minimum footprint "DNA Speed Scanning“ reduces scanning times by up to 50 % Open interface and automatic user guide Versatile use (e.g. Impression Scan Triple Tray, Models, Multi Die, Colour Texture Scans) Universal-carrier plate allows flexible scanning of numerous different model systems Technical data Axes: 2 Electrical connected value: 100-240V / 50/60Hz Power Output: 60 W Accuracy: 6 μm μm Accuracy (μm) implant bars: 10 Full arch scan (sec.): 18 Single die with Ceramill Multi Cap (sec.): 4,5
