Medical compressor BC series

piston1-workstation2-workstation

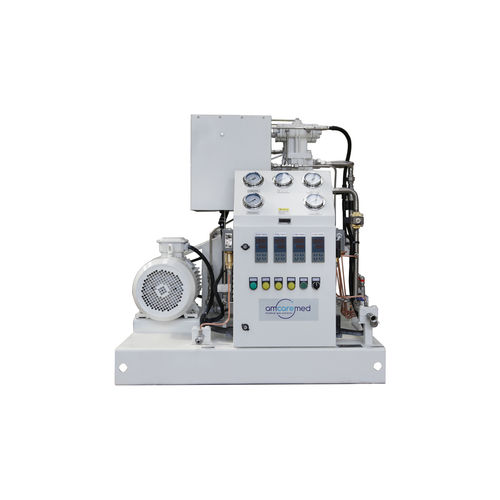

AmcareMed high pressure oxygen booster compressor is a specialized device crucial in healthcare settings to increase the pressure of oxygen gas obtained from a low-pressure source, such as an oxygen generator or a liquid oxygen reservoir, to the elevated pressure needed for medical applications. Our oxygen booster compressors employ advanced piston compression mechanisms, to efficiently elevate the pressure of oxygen. The compression process ensures that the oxygen reaches the desired pressure level safely and reliably. Product Detail AmcareMed oxygen compressor adopts full oil-free lubrication vertical, two-row four-stage compression, water-cooled cylinder. This product does not need to add lubricating oil, not only to ensure the safety of the use of the equipment, and no pollution to the compressed medium. The oxygen booster compressor should be installed indoors or in an awning space, which should ensure sufficient maintenance space and good ventilation. The arrangement of external piping system can be designed by yourself according to the usage requirements. Specifications For Cylinder Filling Capacity: 1-300Nm3/h Inlet pressure: 0.3-0.4Mpa Discharge pressure: 15/20Mpa Power: 1.5-90kw The compressor inlet is equipped with a Y-filter; The compressor adopts packing seal. The maximum average speed of the piston is 0.5 m/s, and the crankshaft speed is 190 r/min. The compressor valve adopts reed valve, and the valve material is imported Swedish steel strip to ensure long-term stable work under the effect of alternating stress. The main bearing of the compressor adopts high quality self-sealing type rolling bearing.
