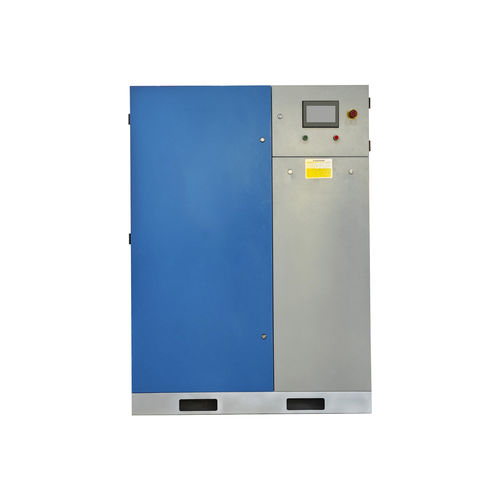

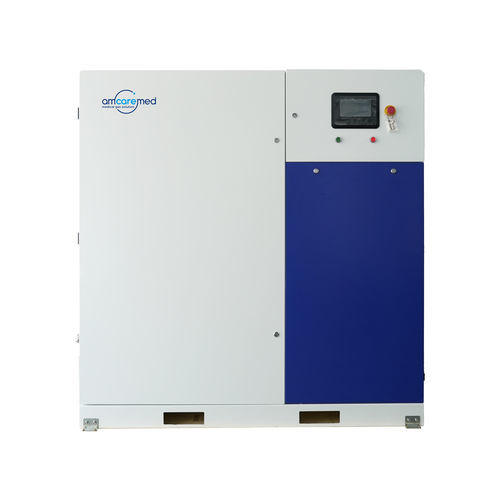

Medical oxygen generator OY seriesmodularplug-and-playcompact
Add to favorites
Compare this product
Characteristics
- Applications
- medical
- Configuration
- modular, plug-and-play, compact
- Type
- PSA
- Other characteristics
- high-purity, with tank
- Flow rate
0.6 m³/h, 1 m³/h, 3 m³/h, 5 m³/h, 10 m³/h
(21.189 ft³/h, 35.315 ft³/h, 105.944 ft³/h, 176.573 ft³/h, 353.147 ft³/h)- Oxygen pressure
Max.: 0.5 MPa
Min.: 0.3 MPa
- Oxygen purity
Max.: 96 %
Min.: 90 %
- Power
1,500 W, 2,200 W, 5,500 W, 11,000 W, 15,000 W
- Length
1,600 mm
(63 in)- Width
750 mm, 800 mm, 950 mm
(29.5 in, 31.5 in, 37.4 in)- Height
1,300 mm, 1,500 mm, 1,920 mm
(51.2 in, 59.1 in, 75.6 in)- Weight
420 kg, 480 kg, 550 kg, 750 kg, 950 kg
(925.9 lb, 1,058.2 lb, 1,212.5 lb, 1,653.5 lb, 2,094.4 lb)
Description
AmcareMed all-in-one medical oxygen generation system uses air as raw material in the process of oxygen generation and only consumes electricity. High efficiency, low energy consumption, high oxygen separation rate.
Features and Benefits
Modular integrated design, compact structure, energy saving
Long-lasting and stable operation can solve the problem of undurability in plateau areas
It can prevent the molecular sieve of the oxygen generator from failing when encountering oil
Lubricant free, no degreasing filter required
Built-in moisture monitoring system to effectively protect the molecular sieve from failure in water
Molecular sieve aluminum cylinder and advanced filling process reduce the problem of molecular sieve pulverization
Intelligent touch screen control system
