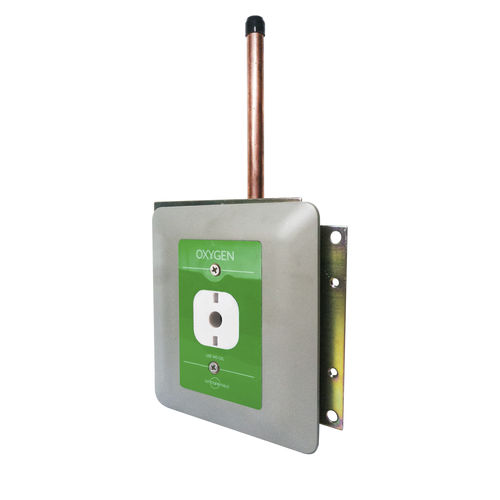

Diamond type outlet OH series

for medical gas pipeline systemsmedical gas

Medical gas outlets are used for medical gas system daily medical care and installed at gas systems delivery points(wardroom bed head units, medical pendants, and equipment wall) to provide the required medical gas. Product Detail AmcareMed OHMEDA medical gas outlets include wall mount assembly type and rough-in assembly type. The wall mount type is using installed on the wall and the console type is using on the bed head unit. Provides NFPA full-color standard for easy gas identification. All outlets are 100% tested for flow, leaks, and cleaned to ensure quality. Accept only OHMEDA gas specific adapters. Produced according to the NFPA99 standard. Comply with the ISO9710 standard. Specifications Gas Type: O2, AIR, VAC, N2O, N2, CO2 are available 360° swivel inlet pipe for easy installation NFPA /ISO full color standard for easy gas identification and the gas name is marked on the outlet bracket and chrome-plated brass outlet valve body, avoid installation or use errors Insertion and extraction 10000 times without failure 100% tested for flow, leaks, and cleaned, can be used safely and securely The outlet with two stage one-way valve for easy maintenance without cutting gas supply
