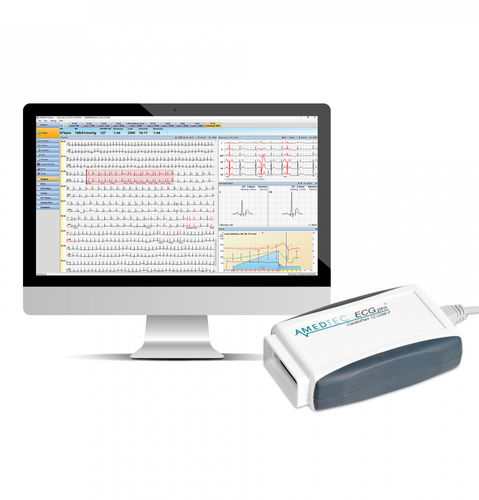

Resting electrocardiograph

stress test12-channelcomputer-based

Simple handling Excellent measurement technology Reliable pacemaker detection Perfect for paperless workflow Technical Data Dynamic range +/- 316 mV DC Sample rate 8000 Hz [125 μs] for each of the 10 electrode channels Resolution 1 μV/LSB [0.01 mm] Frequency range 0 – 150 Hz Pacemaker detection Digital monitoring of all electrodes Input impedance > 50 MOhm Electrodes check Frequency analysis and impedance measurement Input protection - Against defibrillator shock1) and HF from surgery devices Patient cable connection 15-pin D-Sub for 10-lead patient cable Applied part Type CF PC interface USB 2.0 (5 meter USB cable) Power supply Via the USB port of the PC R wage trigger output - Via LPT port of the PC Dimensions 95 mm x 64 mm x 28 mm Weight 90 g Standards DIN EN 60601-1; DIN EN 60601-2; DIN EN 60601-2-25; ANSI/AAMI EC 11
