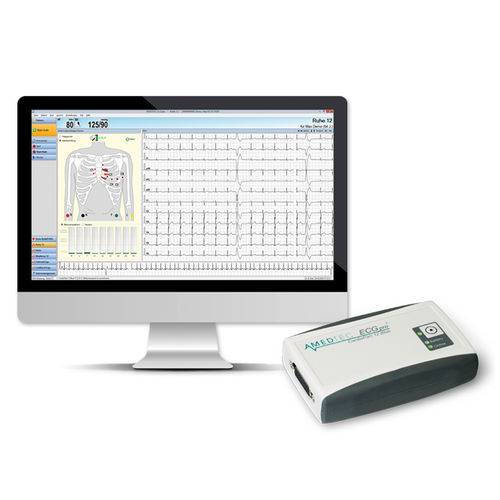

Resting electrocardiograph CARDIOPART BLUE

stress test12-channelcomputer-based

Simple handling Excellent measurement technology Reliable pacemaker detection Perfect for paperless workflow Technical Data Dynamic range +/- 316 mV DC Sample rate 8000 Hz [125 μs] for each of the 10 electrode channels Frequency range 0 – 150 Hz Pacemaker detection Digital monitoring of all electrodes Input impedance > 50 MOhm Electrodes check Frequency analysis and impedance measurement Input protection - Against defibrillator shock1) and HF from surgery devices Patient cable connection 15-pin D-Sub for 10-lead patient cable Applied part Type CF PC interface Bluetooth Class 1 or Class 2 Power supply 2 Mignon AA alkaline or rechargeable batteries R wage trigger output - Via separate radio module Dimensions 110 mm x 64 mm x 28 mm Weight 160 g Standards - DIN EN 60601-1, DIN EN 60601-2, DIN EN 60601-2-25, ANSI/AAMI EC 11, RED 2014/53/EU
