Healthcare facility water treatment system 00HC-3030

reverse osmosis

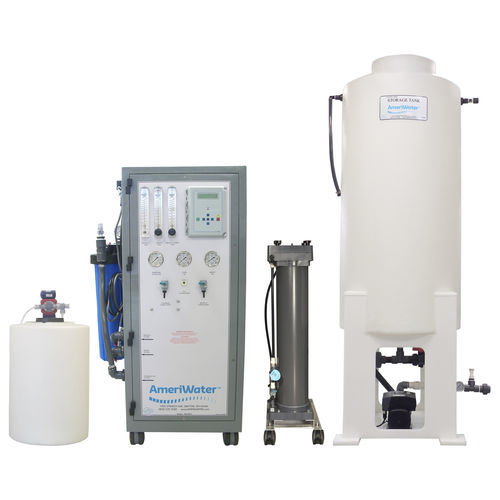

Having high quality water is imperative for patient health and equipment life. AmeriWater’s sterile processing water systems conform with the recommendations put forth by the Association for Advancement of Medical Instrumentation (AAMI), TIR34. These recommendations are divided into two segments for medical device reprocessing: utility water and critical water. AmeriWater’s systems meet AAMI recommendations for both TIR34 segments. This product provides critical water for washers, disinfectors, glassware washers, steam boilers and final rinses. Reverse osmosis system, a deionizer polisher, and a storage tank with demand pump package that provides up to 7,500 GPD. Carbon pre-filter for chlorine removal Anti-scalant injection feed to prevent hard water scale on reverse osmosis membranes RO system with: – Low feed pressure system shut down / alarm – High conductivity of feed and product water Polish DI with either Silex Deionizer or DI exchange tanks handled by local DI exchange provider Storage tank with sealed lid – Distribution pump sized to meet system requirements with shut down on empty storage tank – Submicron vent filter – Distribution loop return manifold Pressure relief valve Distribution loop return flow meter Sample port Distribution loop to drain valve Internal spray nozzle Ultraviolet Light – Controls bacteria proliferation in purified water storage and distribution systems – Equipped with an online monitor to measure output intensity and alarms when lamp needs replaced Ultrafiltration – 0.2 Submicron Endotoxin Cartridge – Installed post UV to remove endotoxins from the purified water storage and distribution system
