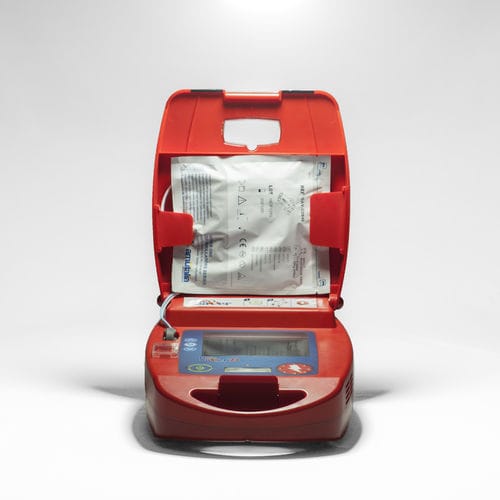

Semi-automatic external defibrillator GEO SAVER D

USBwith ECG monitorbiphasic

The geolocalised AED goes beyond It allows the user to view the ECG and everything needed to know about the patient and ongoing rescue treatment on a 5.7″ full-colour display compliant to IEC/EN 60601-2-27. ECG can also be sent in real time to the AMISAVERCLOUD PLATFORM to enable another operator to monitor the ECG simultaneously with the local rescuer. most detailed and comprehensive screen provides valuable information to rescuers: ABOUT DEVICE: a battery gauge with residual capacity the indicator of available memory for recording a notice if the microphone is active or OFF the local date and time, alarms. ABOUT RESCUE: the adult or child protocol in use the modality in use (AED, ECG or Manual) the fibrillation and shock counts the elapsed rescue time the heart rate (bpm) the impedance (ohms) the energy level to be delivered (joule) a touch/not touch pictogram ECG waveform the R wave detection in Manual Synchronous a charging bar graph if device charges a CPR bar graph and cycles countdown Technical specifications DEFIBRILLATOR Protocols:Various adult shock protocols available on request Charging time:≤9 seconds with a new and fully charged battery depleted battery will result in a longer charging time Analysis time:IEC/EN 60601-2-4 from 4 to 15 seconds Impedance:20-200 ohms Sensitivity:IEC/EN 60601-2-4 (AHADB, MITDB source), 97% Specificity:IEC/EN 60601-2-4 (AHADB, MITDB source), 99% Controls:2 buttons: ON/OFF, shock button, and 3 buttons to surf the menu. Indicators:Status LED indicator informing on device condition Battery gauge with remaining capacity rate Audible alerts and text display with service alarms
