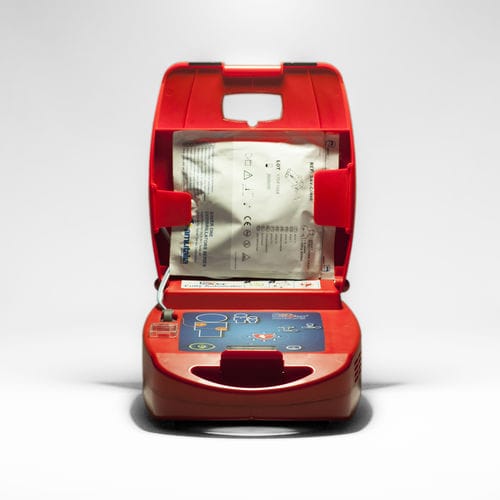

Automatic external defibrillator SGA-B09 series

public access

Geo Saver Fully Automatic is the first geo defibrillator. Designed for public access use and licensed to administer fast and safe rescues. The shock, if required, will be delivered automatically whilst the VIVO BUTTON enable the rescuer to call EMS directly from the AED. MODEL NUMBERS Code SGA-B0990: - Fully Automatic Standard Version at 200J Code SGA-B0991: - Fully Automatic Power Version at 360J CONFIGURATION OPTIOth (BOX CONTENT) Conf-Norm: Standard Basic Configuration - (adult pads, disposable battery) Conf-Rech: Rechargeable Configuration - (adult pads, accumulator, charger station) DEFIBRILLATOR Operation: - Fully Automatic Version Energies: - Standard max 200J or Power max 360J Waveform: - Adaptive BTE (biphasic truncated exponential) conforming to patient chest’s impedance Protocols: - Various adult shock protocols available on request Factory default: - Adult Standard escalating 150, 200, 200J Adult Power escalating 200, 250, 360J Pediatric (Standard or Power) 50J fixed Charging time: - ≤9 seconds with a new and fully charged battery depleted battery will result in a longer charging time Analysis time: - IEC/EN 60601-2-4 from 4 to 15 seconds Impedance: - 20-200 ohms Sensitivity: - IEC/EN 60601-2-4 (AHADB, MITDB source), 97% Specificity: - IEC/EN 60601-2-4 (AHADB, MITDB source), 99% Controls: - 2 buttons: ON/OFF, “i“ info button Flashing Icons: - “connects pads to patient“ “adult/child“ informing on pads type use “don’t touch patient“ warning to stay clear “touch patient“ informing it’s safe to touch
