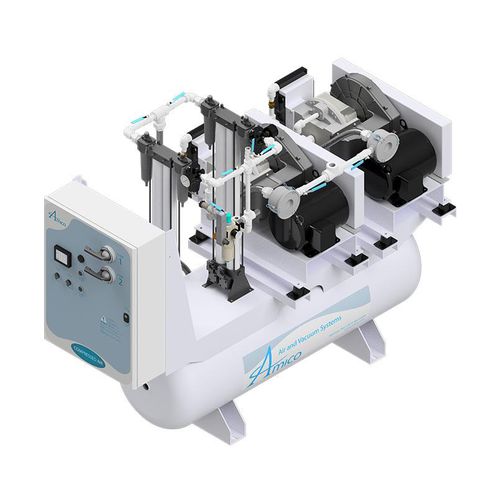

Medical air compression system NFPA Duplex SCD

rotaryspiraloil-free

Amico’s newly designed scroll systems provide footprint reduction and enhances the overall serviceability by means of its compact design. Mounted horizontally on top of the receiver tank, this configuration is available for compressors ranging between 2 – 7.5 HP, offering you maximum space efficiency. UL listed control panel in a NEMA 12 enclosure with a 5.7" Touch Screen Display Manual reset for all alarms All control and alarm functions shall remain energized while any pump in the system remains electrically online Ethernet connectivity with embedded webpage for remote monitoring, password protected for remote adjustment of all operating parameters V-belt driven Oil-Less Rotary Scroll, single stage, air-cooled construction with absolutely no oil needed for operation (Available in 120 or 145 psi configuration) A-Frame, stackable scroll allowing two pumps to run simultaneously with smaller footprint allowing for compact design 3,600 RPM, premium efficiency motor Means of removal of the compressor for service or replacement without interruption to the system Integral air treatment system with purge saving feature, NFPA 99 compliant assembly featuring dual desiccant air dryers, dual pre-filters, after-filters, pressure regulator valves, dew point monitor, CO monitor and system safety valves Completely pre-piped and pre-wired to single-point service connections ASME certified Rated for a minimum of 200 psig design pressure Inside of the receiver consists of a two-part epoxy coating providing rust protection equal or better than that achieved by galvanizing
