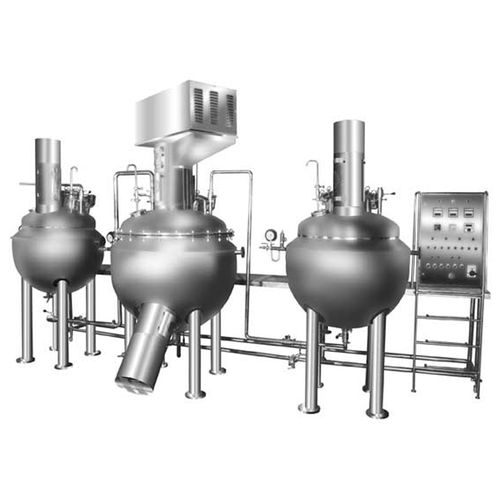

The Ointment Manufacturing Plant consists of a set of equipments designed for ointments, gels, creams and lotions for capacities ranging from 5 kg to 1000 kg.
The Water Phase Vessel is a jacketed cylindrical tank with torrispherical dish ends. A propeller type stirrer is provided for agitating the liquid.
The Wax Phase Vessel is a jacketed cylindrical tank with torrispherical dish ends. A propeller type stirrer is provided for agitating the wax or oil. A conical filter filters out impurities before the wax is transferred to the manufacturing vessel.
The Manufacturing Vessel is a jacketed cylindrical vessel with a conical bottom and anchor type agitator. It is used to mix the viscous product from the Water and wax phase vessels.
The Homogenizer – Tank or Online is used with the manufacturing vessel to reduce particle size and promote uniform mixing.
The Storage Vessel is a tank with a conical bottom in which the product is collected and stored until it has to be transferred to the filling line. It can be provided with an anchor type stirrer and a jacket as per requirement.
The Transfer Pump (twin lobe) is used to transfer the product from the manufacturing vessel to the storage vessel.
The Metering Pump is a positive displacement pump through which the product can be transferred to the filling line at a controlled flow rate.
The Inter-Connecting Pipeline is provided for the plant as per the layout. All pipes are electropolished from the inside.
A suitable Working Platform is provided to help in the maintenance and operation of the plant. Â
