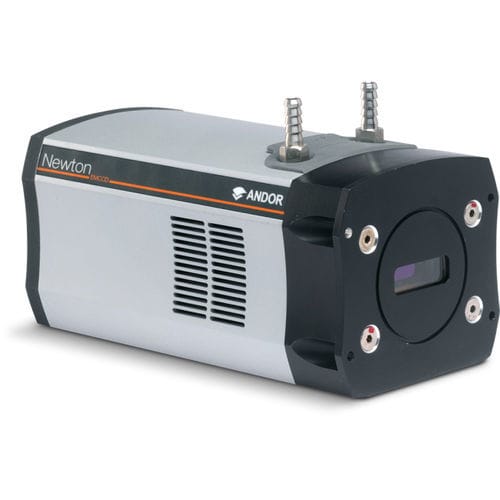

Spectroscopy camera module Newton 971

digitalEMCCDcooled

The most sensitive EMCCD spectroscopic detector ever offers you active pixels of 1600 x 400 along with 16 x 16 µm pixel size along with the -100°C TE cooling. It’s variable readout rates enable data readout at up to 3 Megahertz, through the plug and play USB interface. EM sensor Multi-Megahertz Readout TE cooling to -100°C UltraVac™ 16 x 16 μm pixel size EM technology enables charge from each pixel to be multiplied on the sensor before readout, providing single photon sensitivity. The Newton EM platform combines a 1600 x 200 (or 1600 x 400) array of 16 µm pixels, thermoelectric cooling down to -100°C for negligible dark current, 3MHz readout and USB 2.0 plug-and-play connectivity to provide unrivalled performance for spectroscopic applications. The dual output amplifiers allow software selection between either a conventional High Sensitivity or Electron Multiplying outputs to suit a broad range of photon regime conditions. This makes the Newton EMCCD the ideal choice for ultrafast chemical mapping applications e.g. SERS, TERS or luminescence mapping. Upgrades/Accessories XW-RECR - Coolant re-circulator for enhanced cooling performance ACC-XW-CHIL-160 - Oasis 160 Ultra Compact Chiller Unit (tubing to be ordered separately) ACC-6MM-TUBING-2xxxxM - 6 mm tubing option for ACC-XW-CHIL-16 LM-C - C-mount lens adaptor LM-NIKON-F - F-mount lens adaptor LMS-NIKON-F-NS25B - Nikon F-mount lens adaptor with shutter ACC-SD-VDM1000 - Shutter Driver for NS25B Bistable Shutter (not needed for Shamrock spectrographs)
