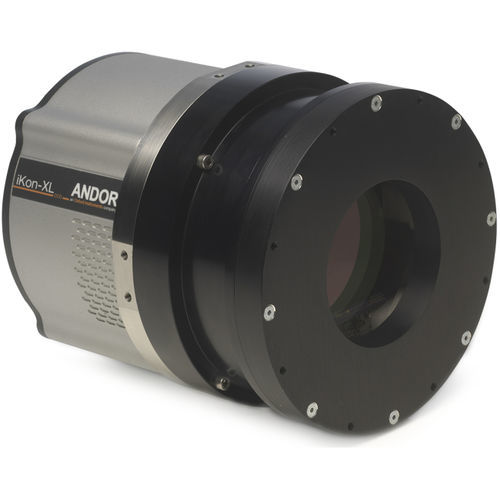

Microscope camera iKon-XL 231

digitalCCDcooled

Andor’s NEW iKon-XL is a TE-cooled, very large area CCD camera platform, accommodating big field of view sensors that are ideally suited to long exposure astronomy applications. Patent-pending ColdSpace™ technology thermoelectrically cools a back-illuminated 16.8 Megapixel sensor (e2v) down to -100 °C, avoiding the requirement for liquid nitrogen or unreliable cryo coolers. Extended Dynamic Range technology is complemented by up to 18-bit digitization capability. The iKon-XL 231 model uses the e2v CCD231-84 ‘astro’ back-illuminated sensor, combining exceptionally low read noise of 2.1 e- with a very large well depth of 350,000 e- and available with a range of sensor QE coatings, in both standard and deep depletion formats. – 100 °C TE cooled large area sensors NO liquid nitrogen, NO cryo-cooler Extended Dynamic Range (18-bit) e2v CCD231-84 sensor (deep depletion available) Andor’s iKon-XL is a thermoelectrically (TE) cooled, very large area CCD camera platform, accommodating large field of view sensors that are ideally suited to long exposure astronomy applications. Using the unique, patent-pending ColdSpace™ technology, the ultrasensitive iKon-XL is capable of TE cooling a 16.8 Megapixel sensor (e2v back-illuminated) down to -100 °C, avoiding the requirement for liquid nitrogen or unreliable cryo coolers. The iKon-XL also uses an exclusive Extended Dynamic Range technology, facilitating lowest noise and maximum well depth within one scan, complemented by up to 18-bit digitization capability. Flexible connectivity is standard through either USB 3.0 or a long distance direct fibre optic interface.
